5 Megapiksel Değişken Odaklı Dış Ortam Ağ Kamerası
DCS‑7517
-
Product Status (Revision A):
Live
Live: The product is actively being manufactured and sold.

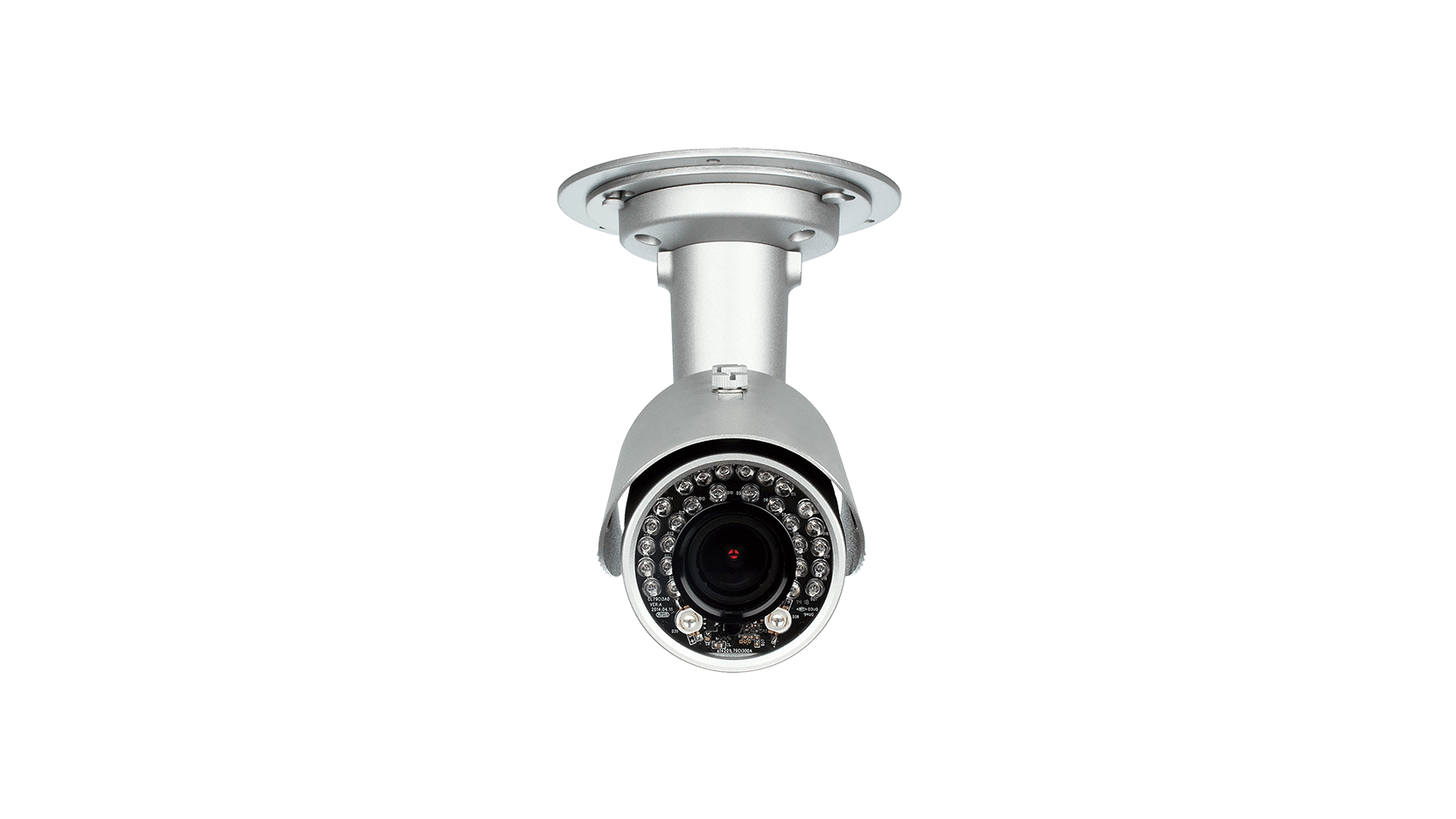

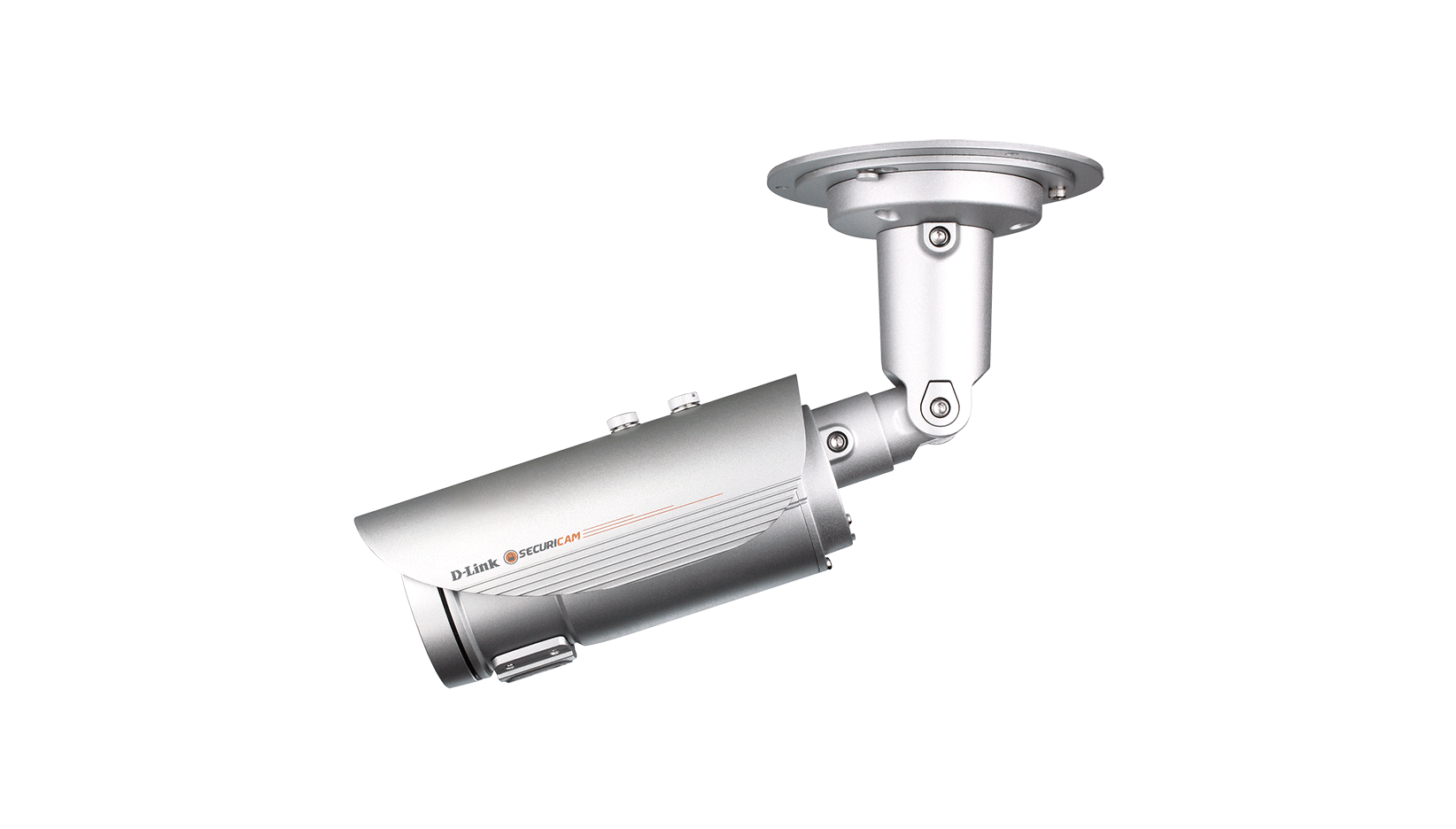

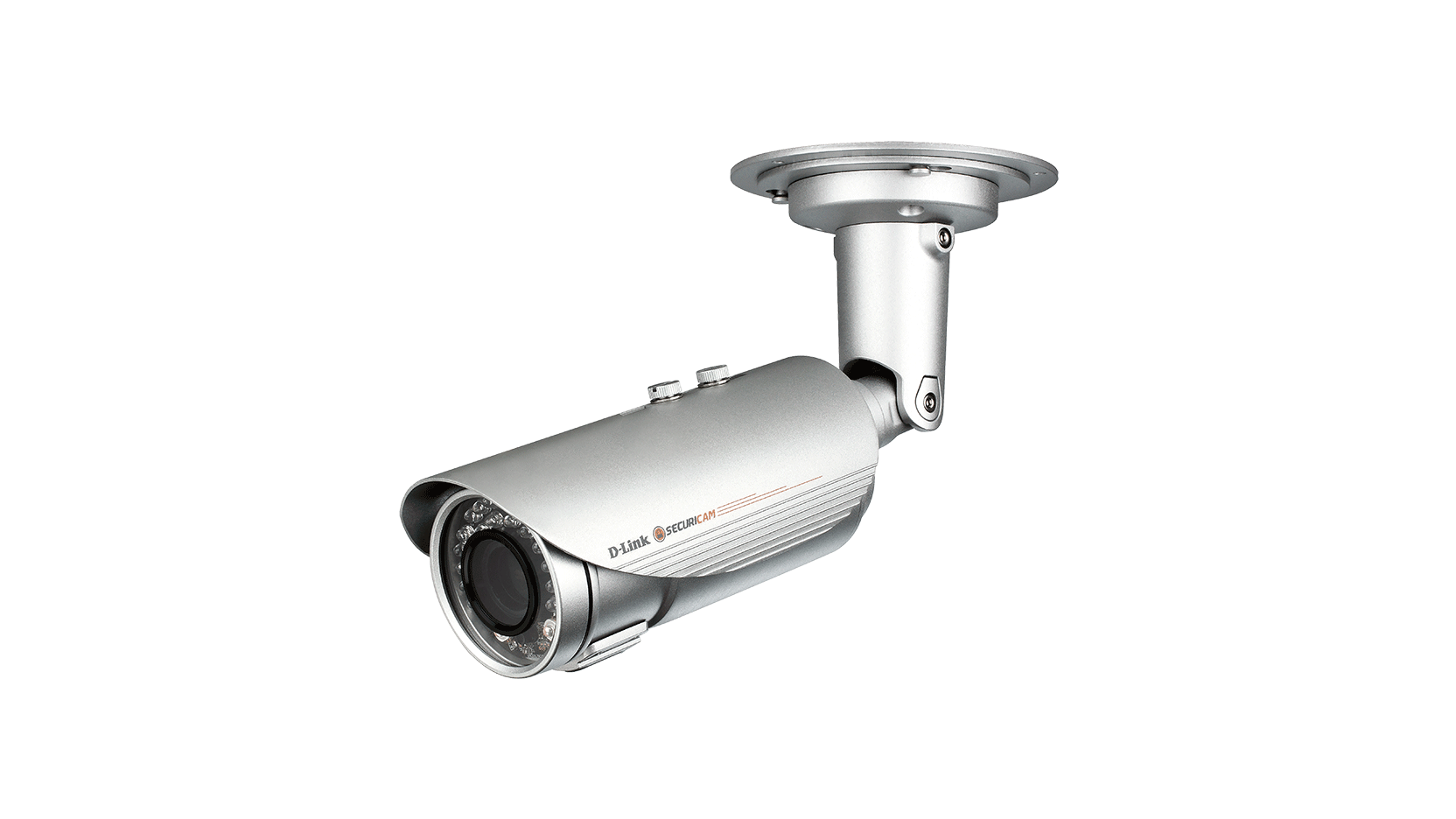

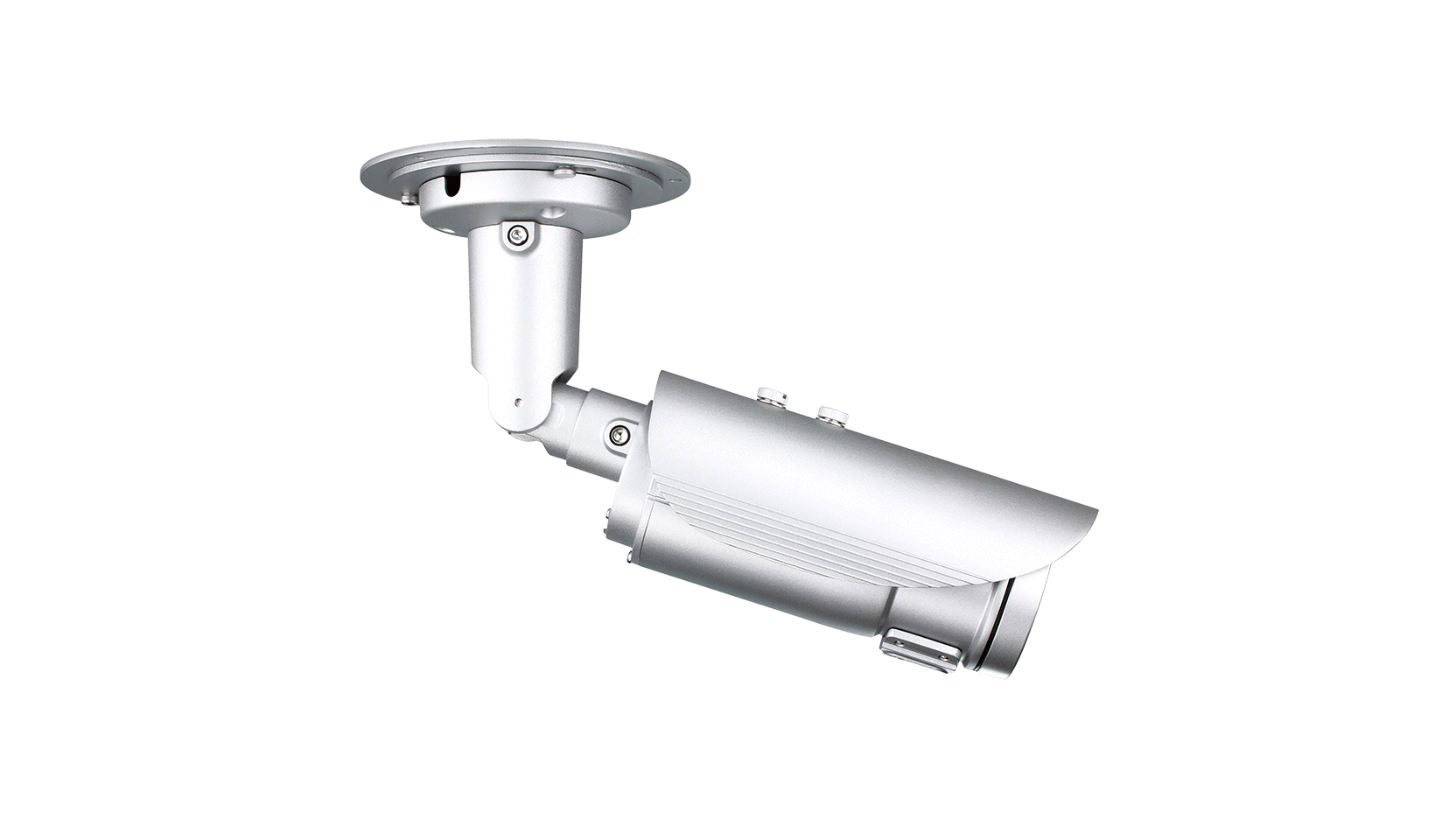

D-Link DCS-7517 5 Megapiksel Değişken Odaklı Dış Ortam Ağ Kamerası, yüksek çözünürlüklü bir profesyonel gözetim ve güvenlik çözümüdür. Kamera, her koşulda gerçekten üstün kalitede video kaydı yapmak için mekanize, değişken odaklı lensli ve dahili WDR görüntü geliştirmeli 5 megapiksel progressive scan CMOS görüntü sensörü kullanır.
Specs
|
İç ortam/dış ortam |
Dış ortam |
|---|---|
|
Tip |
Bullet |
|
Bağlantı |
Kablolu PoE |
|
Çözünürlük |
5 megapiksel |
|
Görüntü sensörü |
1/3.2'' 5 megapiksel WDR progressive scan CMOS |
|
Maximum Video Resolution |
1920 x 1080 (16:9) 2560 x 1920 (diğer) |
|
Lens |
2.8-12 mm F1.8 Motorised Varifocal |
|
Infrared-Cut Removable Filter |
+ |
|
Gece görüşü |
+ |
|
Gece görüş menzili |
30 m |
|
Wide Dynamic Range(WDR) |
+ |
|
Optical Zoom |
4.2x |
|
Privacy Masks |
5 zones |
|
Analouge Output |
BNC |
|
2-way audio |
+ |
|
External Microphone Input |
+ |
|
External Speaker Output |
+ |
|
Digital Input/Output(DI/DO) |
1/1 |
|
External Card Slot |
MicroSD SDHC (max 32 GB) |
|
Özellikler |
ONVIF |
|
Video Formatı |
H.264 MJPEG |
|
Multi-Stream |
+ |
|
Mobil Stream |
+ |
|
Dijital Zoom |
10x |
|
Hareket Algılama |
+ |
|
Olay Kayıt |
+ |
|
E-mail Bildirimi |
+ |
|
NAS Kayıt |
+ |
