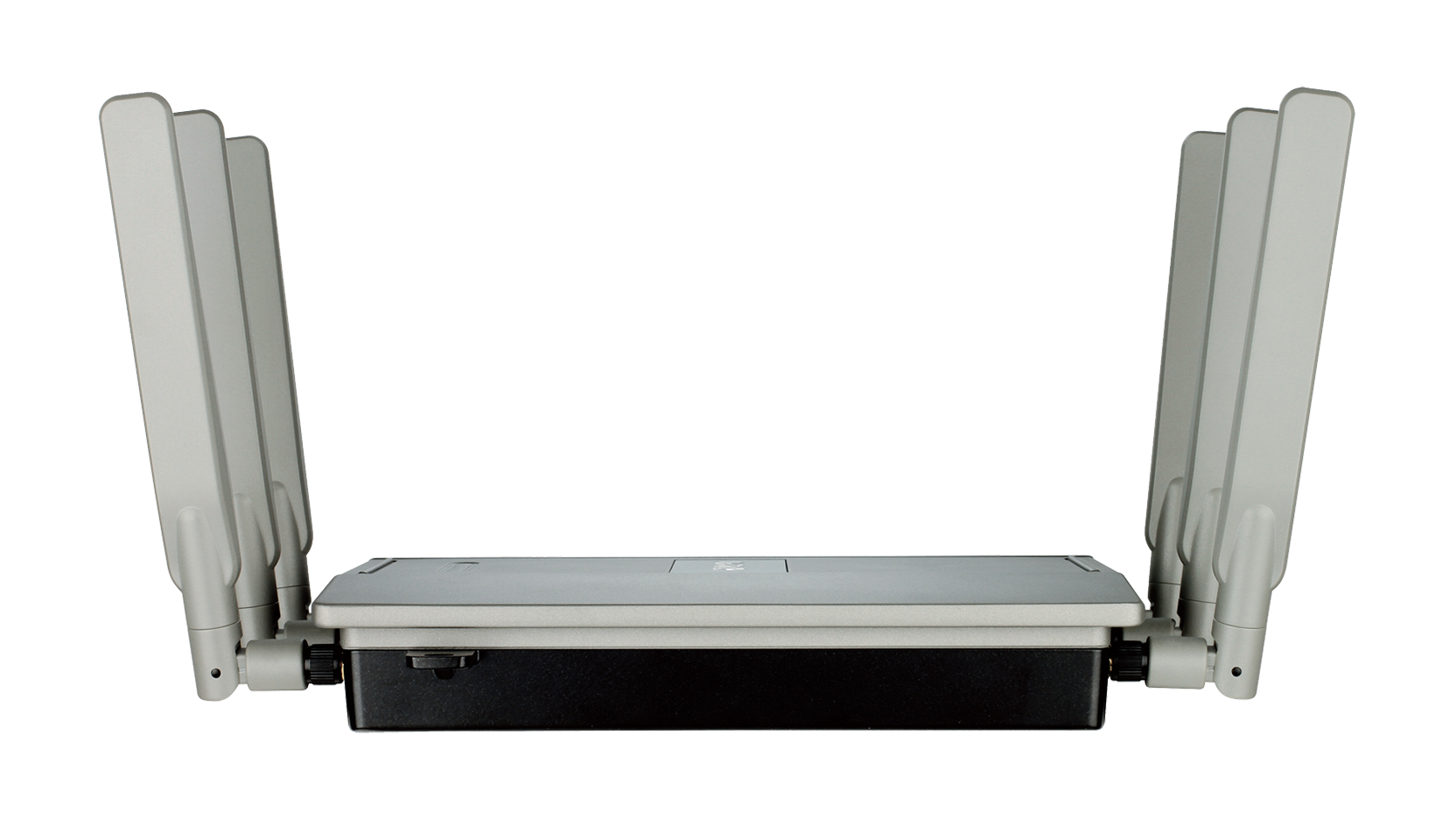

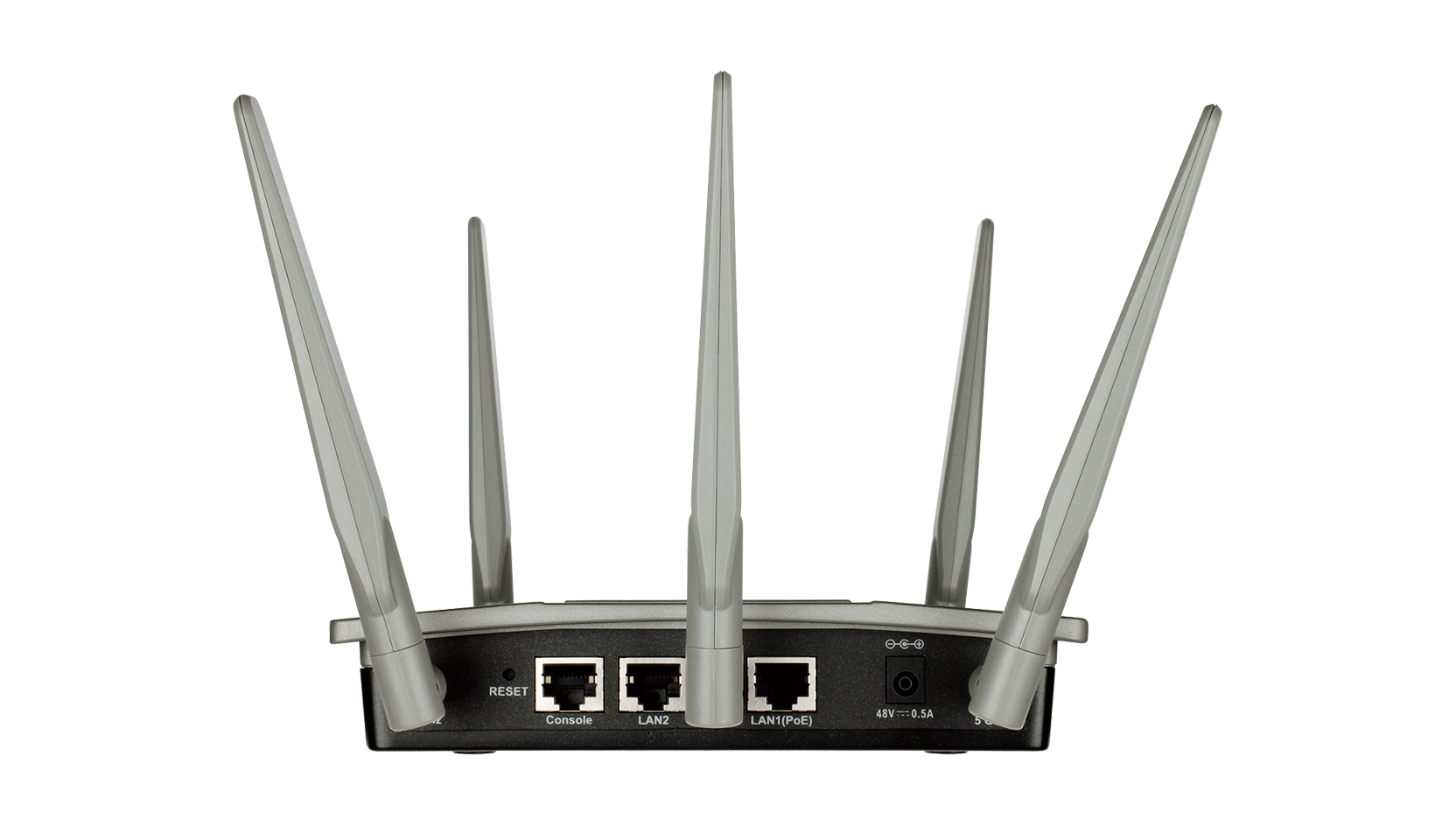

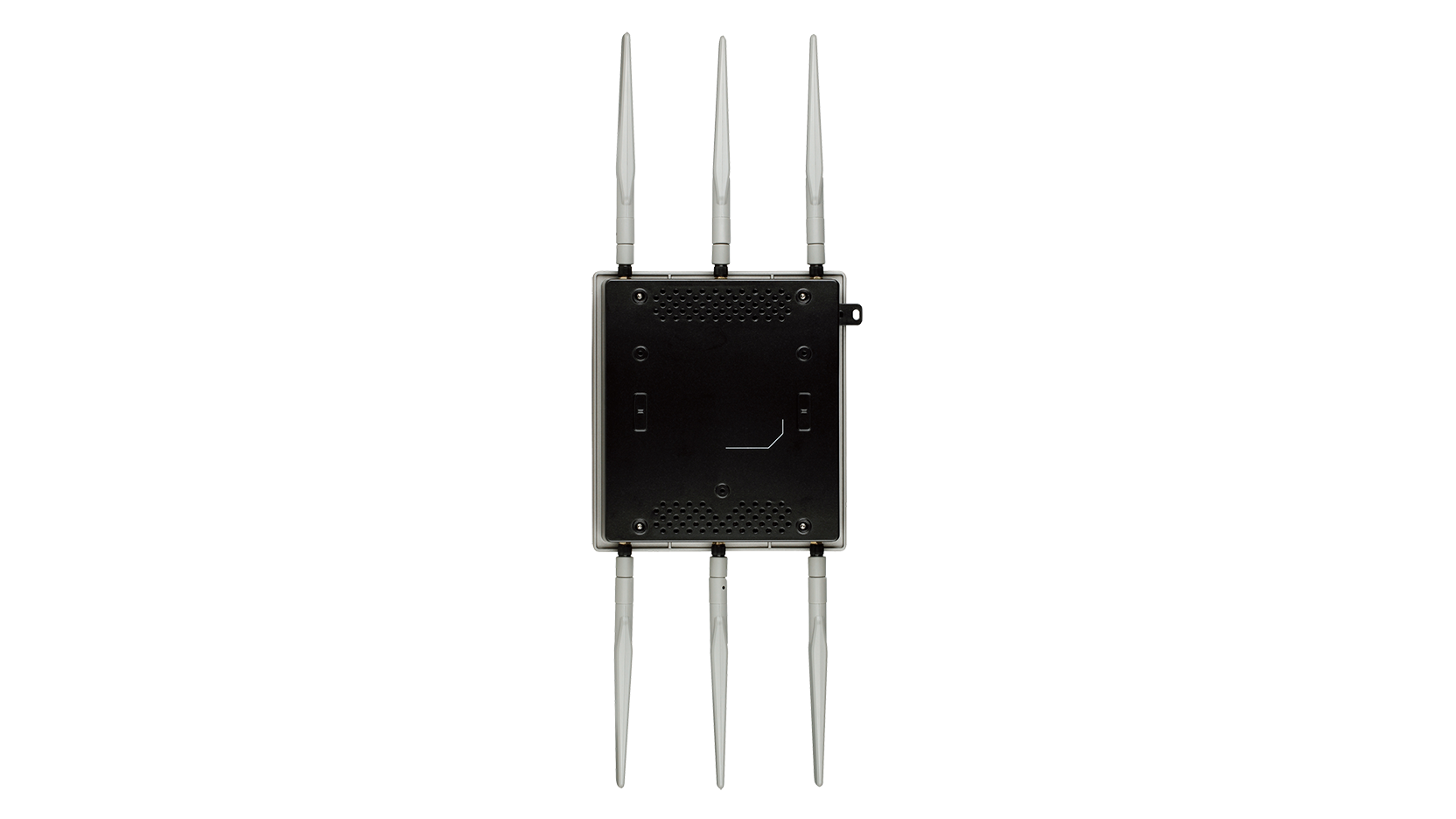

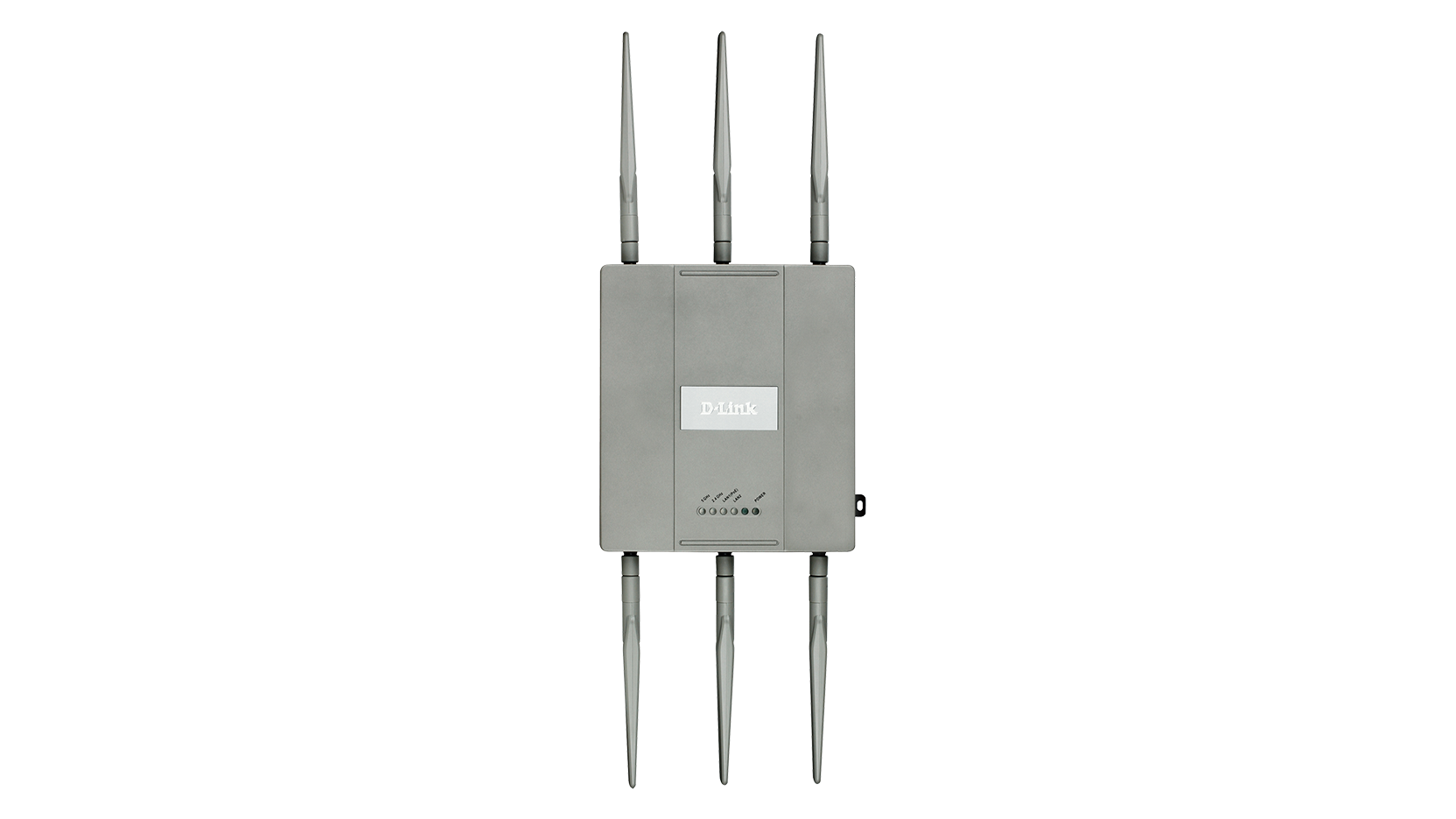

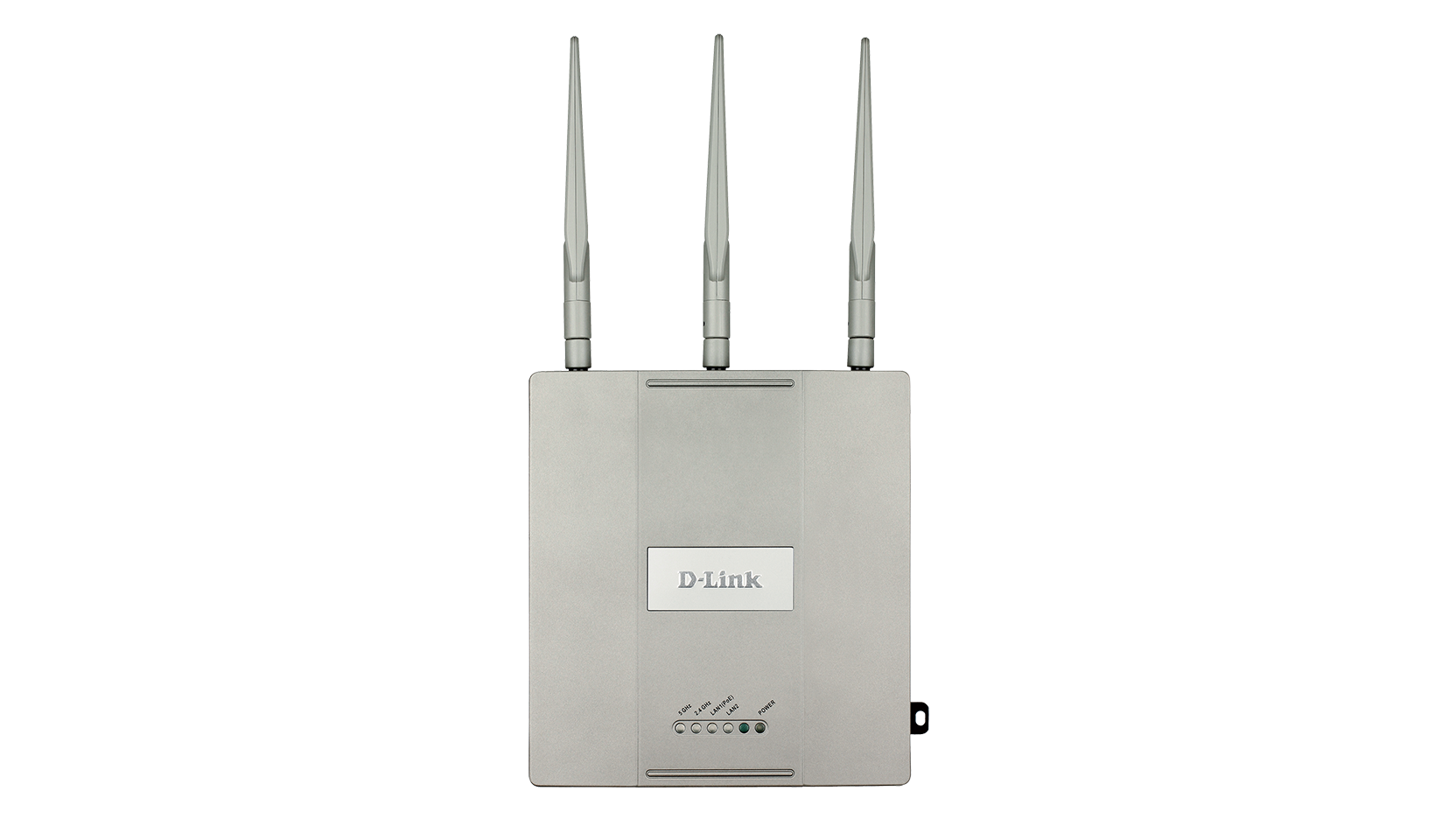

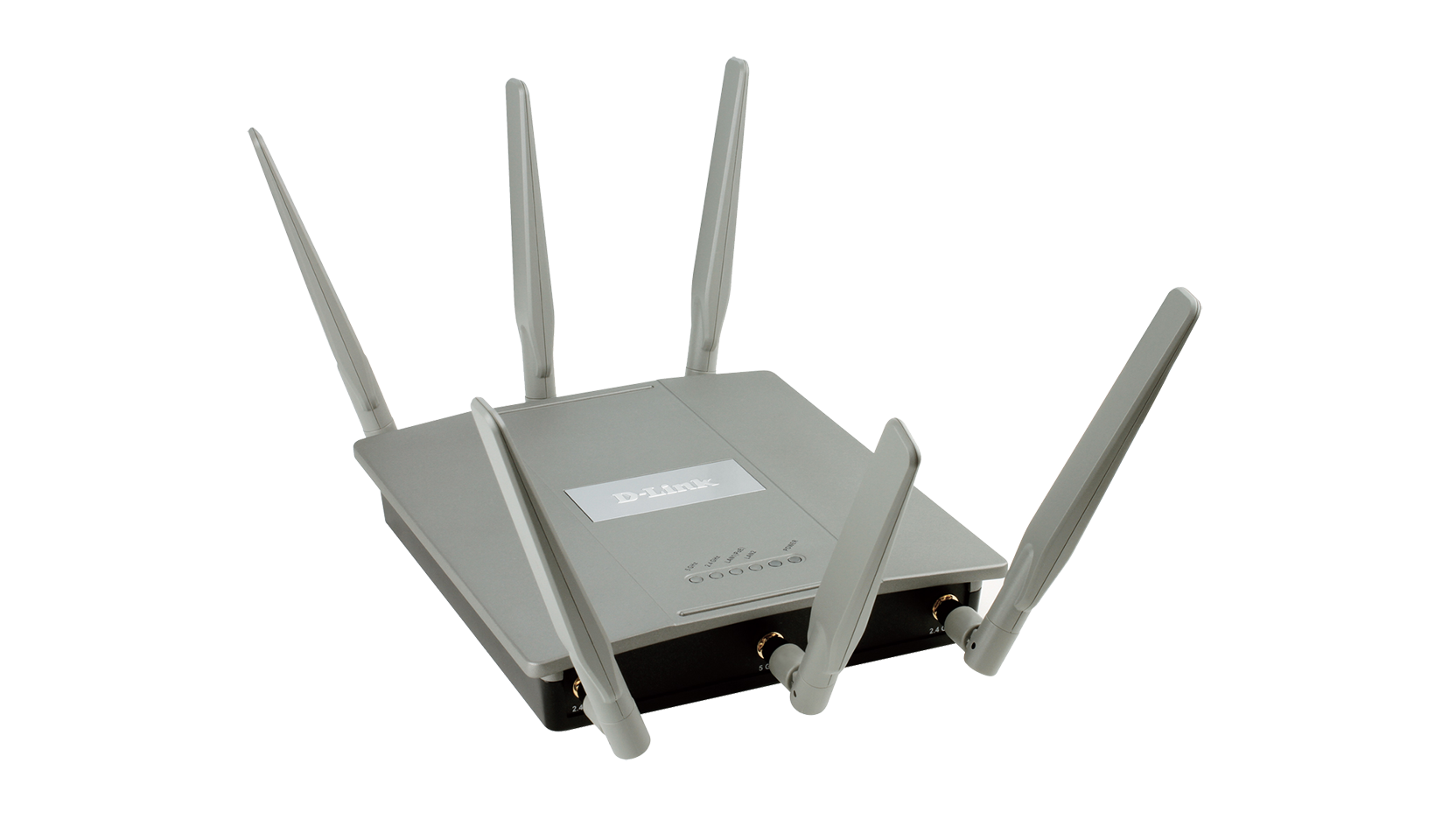

Wireless AC1750 Simultaneous Dual-Band PoE Erişim Noktası

DAP‑2695

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

DAP-2695, zorlu koşullar için tasarlanmış çok yönlü ve oldukça güçlü bir iç mekan erişim noktasıdır. İç mekanlarda erişim noktaları oluşturmak veya kablosuz ağların kapsama alanlarını genişletmek için ideal bir çözümdür.


Download the datasheet.

Specs

Download the datasheet.

Tip

 Software Managed AP

Kablosuz ağ standardı

 Wireless AC

Frekans bandı

 Simultane çift-band

Anten tipi

 6 adet sökülebilir çok yönlü anten

Anten kazancı

 4 dBi - 2.4 GHz

6 dBi - 5 GHz

Power-over-Ethernet

 +

Kablo portu

 2 x Gigabit Ethernet LAN

Konsol portu

 +

İç ortam/dış ortam

 İç ortam

Kasa tipi

 Metal

Plenum rated (UL-2043)

 +

Wireless modları

 Access Point (AP)

WDS bridge

WDS with AP

Wireless client

Gelişmiş özellikler

 MIMO

Maximum number of SSIDs

 16 per radio

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WEP 64/128 bit

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WPA_WPA2_PSK over WDS

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Yönetim platformu

 Central WiFiManager (CWM-100)

WEB

 +

SNMP (v1, v2c, v3)

 +

CLI

 +

Telnet

 +

SSH

 +

Syslog

 +

Central management (through AP Manager II and/or D-View Wireless Control Module)

 +

Configuration group sync through AP Array (up to 8 APs)
+
