4G LTE M2M Router

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

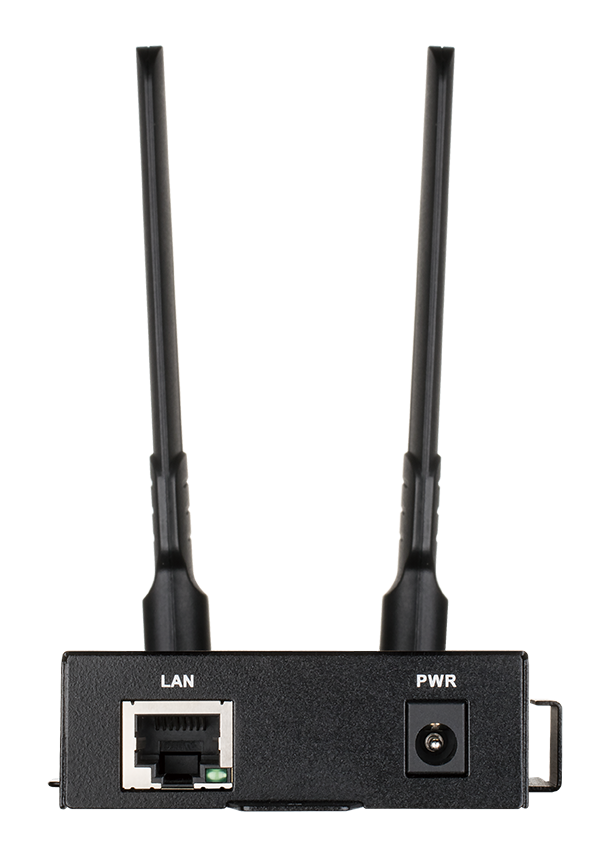

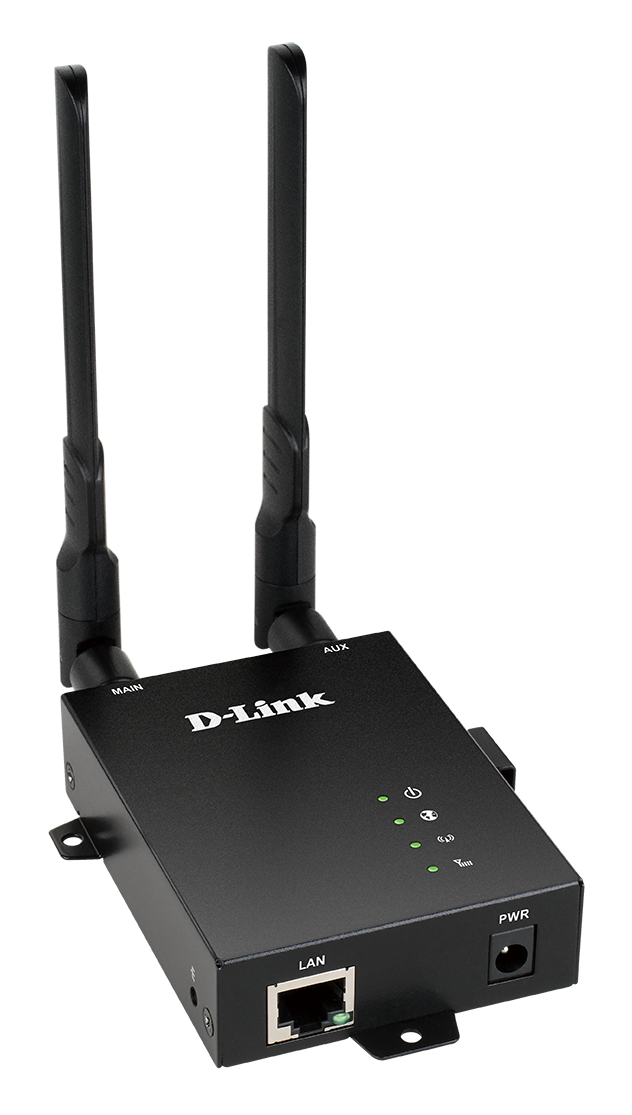

4G LTE M2M Router

DWM‑312

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • Speeds up to 150 Mbps1
  • Fast Ethernet

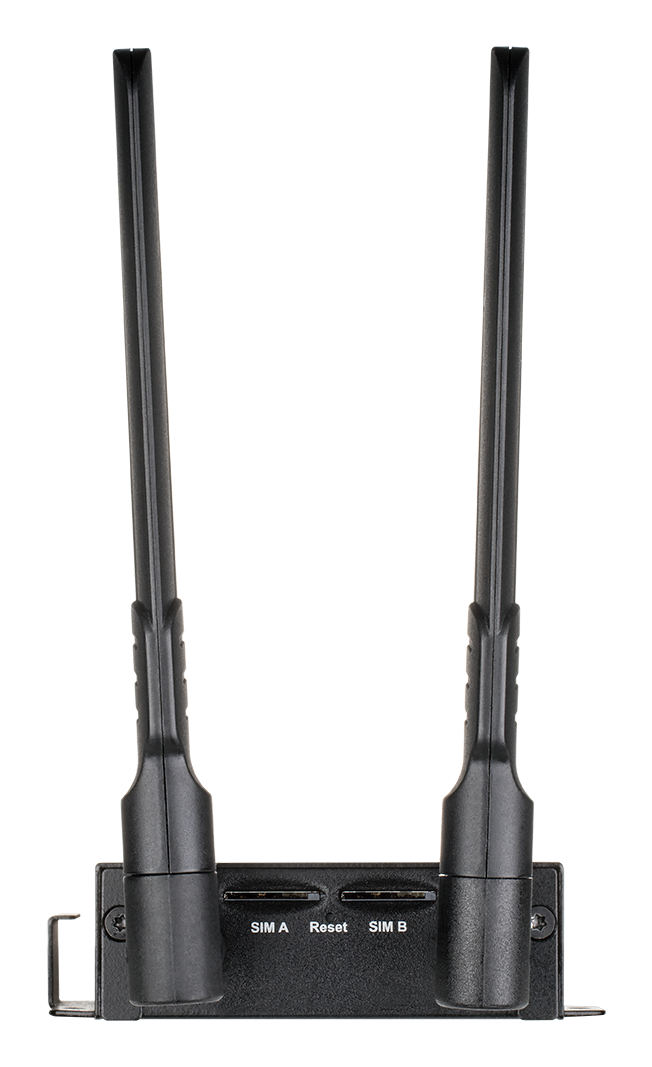

  • Dual-SIM slot
  • Zinc-plated steel case for durability
  • Withstands extreme temperatures and humidity

Download the datasheet.

Specs

Download the datasheet.

Type

 VPN security router

Antenna type

 2 detachable omni-directional antennas

Wired interface

 1 x Fast Ethernet LAN

3G/4G LTE support

 3G/4G LTE via Dual SIM

Type of housing

 Metal

VPN features

 IPSec NAT Traversal

DHCP server

 +

WEB

 +

SNMP (v1, v2c, v3)

 +

Support

Industrial Layer 2+ Gigabit Managed Switch with 10G SFP+ slots

  • Slide 1

  • Slide 2

  • Slide 3

Industrial Layer 2+ Gigabit Managed Switch with 10G SFP+ slots

DIS‑700G‑28XS

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 24 x SFP ports, 4 x 10G SFP+ slots
  • Layer 2+ management features
  • High availability with redundant dual DC inputs
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, EMI, EMS

Download the datasheet.

Specs

Download the datasheet.

Type

 Managed

Number of ports

 16 to 28 ports

Layer

 Layer 2+

Main type of ports

 SFP

Type of uplink ports

 10GbE SFP+

Fanless

 +

Form Factor

 Rackmountable

Housing

 Metal

Jumbo frame

 +

Environmental

 Free Fall: IEC60068-2-32

Shock: IEC60068-2-27

Vibration: IEC60068-2-6

<20ms link loss recovery

 +

MAC address

 8K

Spanning Tree Protocol

 802.1D STP

802.1s MSTP

802.1w RSTP

Link aggregation

 802.3ad

VLAN group (max static)

 2048

VLAN type

 Port-based

Protocol-based

Advanced VLAN

 Double VLAN (Q-in-Q)

Number of QoS queues per port

 8

CoS based on contents

 +

Bandwidth control

 1 Kbps minimum granularity

Three colour marker

 1 Kbps minimum granularity

Encryption protocol supported

 SSH

BPDU attack protection

 +

802.1X access control

 +

RADIUS/TACACS+ authentication

 +

SNMP (v1/v2c/v3)
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.41mb Download
Version Description Date Type File Size
- Product Manual - PDF 1.62mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 1.10mb Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download

Industrial Gigabit Managed PoE Switch with SFP slots

  • Slide 1

  • Slide 2

Industrial Gigabit Managed PoE Switch with SFP slots

DIS‑300G‑14PSW

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 8 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 4 x 100/1000BaseSFP slots
  • 240 W PoE Power Budget
  • High availability
  • Easy-to-control management interfaces and security
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, NEMA‑TS2 Section 2, EMC

Download the datasheet.

Specs

Download the datasheet.

Type

 Smart managed

Number of ports

 5 to 14 ports

Layer

 Layer 2

Main type of ports

 1000BASE-T Gigabit Ethernet

Type of uplink ports

 1000BASE-T Gigabit Ethernet

SFP

PoE options

 802.3af

802.3at

Number of PoE ports

 8

PoE power budget

 See datasheet

Fanless

 +

Form Factor

 DIN rail

Housing

 Metal

Jumbo frame

 +

Environmental

 Free Fall: IEC60068-2-32

Shock: IEC60068-2-27

Vibration: IEC60068-2-6

<20ms link loss recovery

 +

MAC address

 8K

Spanning Tree Protocol

 802.1D STP

802.1s MSTP

802.1w RSTP

Link aggregation

 802.3ad

VLAN group (max static)

 1024

256

VLAN type

 MAC-based

Port-based

Protocol-based

Advanced VLAN

 Double VLAN (Q-in-Q)

Number of QoS queues per port

 8

Encryption protocol supported

 SSH

802.1X access control

 +

RADIUS/TACACS+ authentication

 +

SNMP (v1/v2c/v3)

 +

LLDP
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.56mb Download
Version Description Date Type File Size
- Product Manual - PDF 1.11mb Download
- Product Manual - PDF 4.16mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 0.37mb Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download

Industrial Gigabit Managed PoE Switch with SFP slots

  • Slide 1

  • Slide 2

Industrial Gigabit Managed PoE Switch with SFP slots

DIS‑300G‑8PSW

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 4 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 2 x 100/1000BaseSFP slots
  • 120 W PoE Power Budget
  • High availability
  • Easy-to-control management interfaces and security
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, NEMA‑TS2 Section 2, EMC

Download the datasheet.

Specs

Download the datasheet.

Type

 Smart managed

Number of ports

 5 to 14 ports

Layer

 Layer 2

Main type of ports

 1000BASE-T Gigabit Ethernet

Type of uplink ports

 1000BASE-T Gigabit Ethernet

SFP

PoE options

 802.3af

802.3at

Number of PoE ports

 4

8

PoE power budget

 See datasheet

Fanless

 +

Form Factor

 DIN rail

Housing

 Metal

Jumbo frame

 +

Environmental

 Free Fall: IEC60068-2-32

Shock: IEC60068-2-27

Vibration: IEC60068-2-6

<20ms link loss recovery

 +

MAC address

 8K

Spanning Tree Protocol

 802.1D STP

802.1s MSTP

802.1w RSTP

Link aggregation

 802.3ad

VLAN group (max static)

 1024

256

VLAN type

 MAC-based

Port-based

Protocol-based

Advanced VLAN

 Double VLAN (Q-in-Q)

Number of QoS queues per port

 8

Encryption protocol supported

 SSH

802.1X access control

 +

RADIUS/TACACS+ authentication

 +

SNMP (v1/v2c/v3)

 +

LLDP
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.56mb Download
Version Description Date Type File Size
- Product Manual - PDF 4.16mb Download
- Product Manual - PDF 1.11mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 0.37mb Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download

Industrial Gigabit Managed Switch with SFP slots

  • Slide 1

  • Slide 2

Industrial Gigabit Managed Switch with SFP slots

DIS‑300G‑12SW

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 8 x 100/1000BaseT ports, 4 x 100/1000BaseSFP slots
  • High availability
  • Easy-to-control management interfaces and security
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, NEMA‑TS2 Section 2, EMC

Download the datasheet.

Specs

Download the datasheet.

Type

 Smart managed

Number of ports

 5 to 14 ports

Layer

 Layer 2

Main type of ports

 1000BASE-T Gigabit Ethernet

Type of uplink ports

 SFP

Number of PoE ports

 8

Fanless

 +

Form Factor

 DIN rail

Housing

 Metal

Jumbo frame

 +

Environmental

 Free Fall: IEC60068-2-32

Shock: IEC60068-2-27

Vibration: IEC60068-2-6

<20ms link loss recovery

 +

MAC address

 8K

Spanning Tree Protocol

 802.1D STP

802.1s MSTP

802.1w RSTP

Link aggregation

 802.3ad

VLAN group (max static)

 1024

256

VLAN type

 MAC-based

Port-based

Protocol-based

Advanced VLAN

 Double VLAN (Q-in-Q)

Number of QoS queues per port

 8

Encryption protocol supported

 SSH

802.1X access control

 +

RADIUS/TACACS+ authentication

 +

SNMP (v1/v2c/v3)

 +

LLDP
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.56mb Download
Version Description Date Type File Size
- Product Manual - PDF 4.16mb Download
- Product Manual - PDF 1.11mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 0.37mb Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download

Industrial Gigabit Smart Managed PoE Switch

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

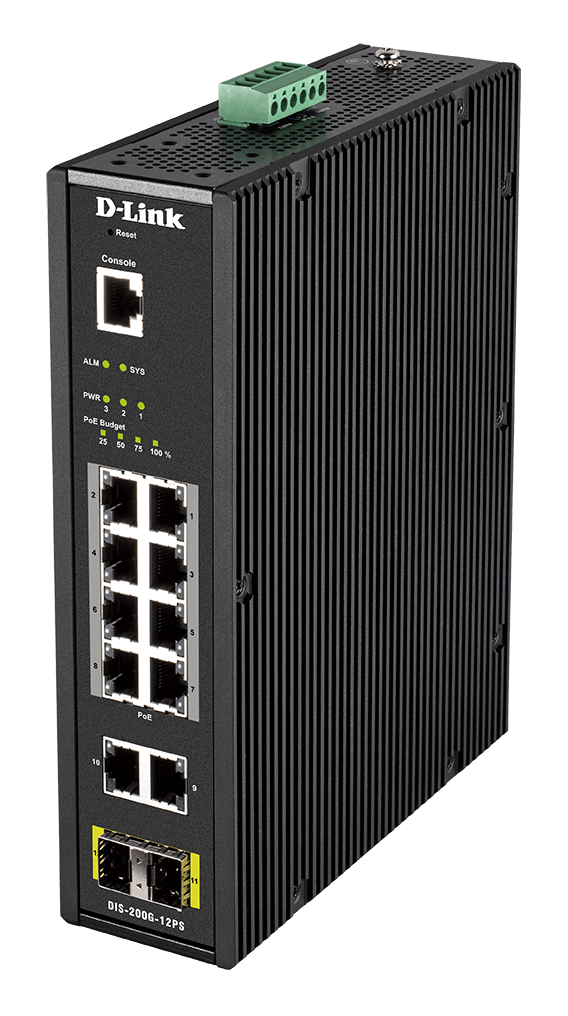

Industrial Gigabit Smart Managed PoE Switch

DIS‑200G‑12PS

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 8 x 10/100/1000Base-T PoE+ ports, 2x 10/100/1000Base-T ports, 2 x SFP ports
  • RJ-45 Console port
  • Easy-to-control management interfaces and security
  • Withstands severe temperatures
  • Certified for vibration, shock, free-fall, EMC

Download the datasheet.

Specs

Download the datasheet.

Type

 Industrial

Smart managed

Number of ports

 5 to 14 ports

Layer

 Layer 2

Main type of ports

 1000BASE-T Gigabit Ethernet

Type of uplink ports

 SFP

Switching capacity

 24 Gbps

PoE options

 802.3af

802.3at

Number of PoE ports

 8

PoE power budget

 See datasheet

Fanless

 +

802.3az Energy-Efficient Ethernet support

 +

Form Factor

 DIN rail

Housing

 Metal

Jumbo frame

 +

Cable diagnostics

 +

Environmental

 Free Fall: IEC60068-2-32

Shock: IEC60068-2-27

Vibration: IEC60068-2-6

MAC address

 8K

Spanning Tree Protocol

 802.1D STP

802.1s MSTP

802.1w RSTP

Ethernet ring protection switching (ERPS)

 +

Link aggregation

 802.3ad

VLAN group (max static)

 1024

128

VLAN type

 GVRP

Port-based

Advanced VLAN

 Asymmetric VLAN

Auto Surveillance VLAN

Voice VLAN

Number of QoS queues per port

 4

8

Encryption protocol supported

 SSH

802.1X access control

 +

RADIUS/TACACS+ authentication

 +

SNMP (v1/v2c/v3)

 +

LLDP

 +

Support

Version Date Type File Size
Datasheet EN - PDF 0.47mb Download
Version Description Date
- Additional downloads - Download

Industrial Gigabit Smart Managed Switch

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

  • Slide 5

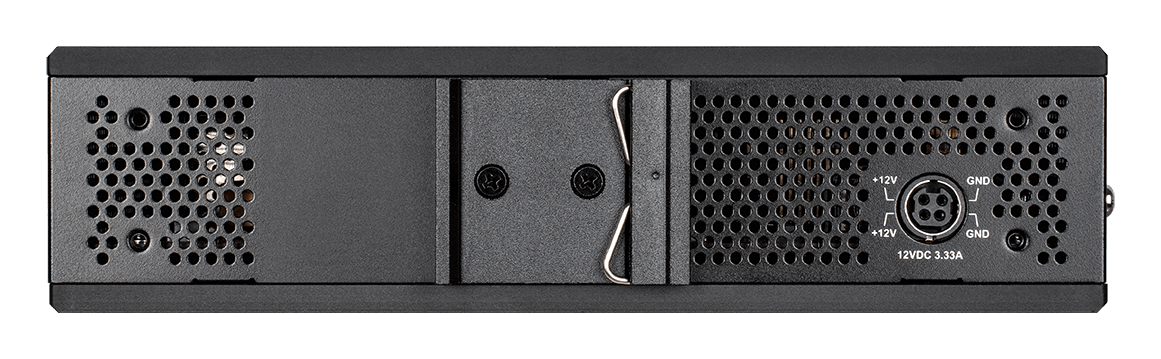

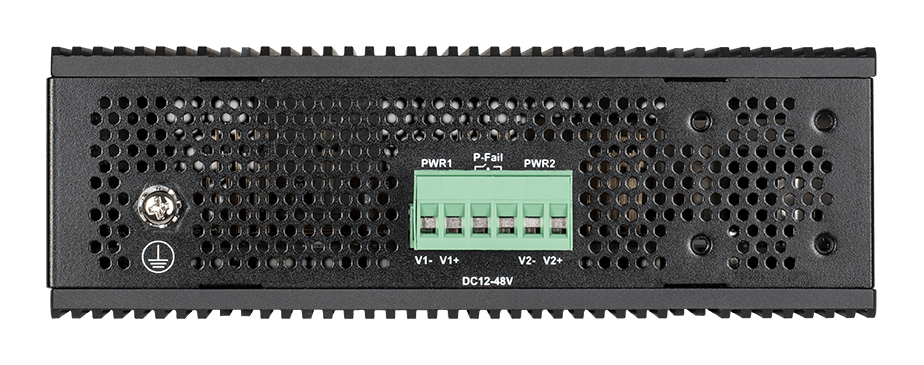

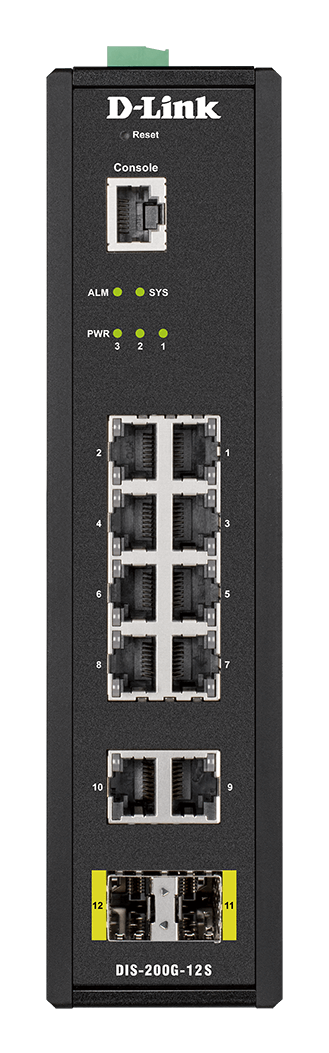

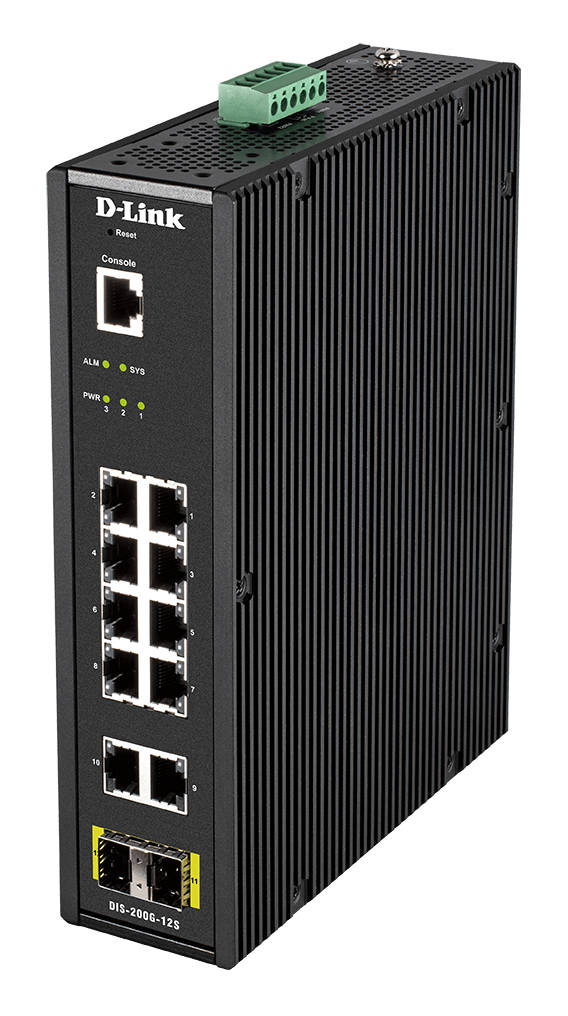

Industrial Gigabit Smart Managed Switch

DIS‑200G‑12S

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 10 x 10/100/1000Base-T ports, 2 x SFP ports
  • RJ-45 Console port
  • Easy-to-control management interfaces and security
  • Withstands severe temperatures
  • Certified for vibration, shock, free-fall, EMC

Download the datasheet.

Specs

Download the datasheet.

Type

 Industrial

Smart managed

Number of ports

 5 to 14 ports

Layer

 Layer 2

Main type of ports

 1000BASE-T Gigabit Ethernet

Type of uplink ports

 SFP

Switching capacity

 24 Gbps

Fanless

 +

802.3az Energy-Efficient Ethernet support

 +

Form Factor

 DIN rail

Housing

 Metal

Jumbo frame

 +

Cable diagnostics

 +

Environmental

 Free Fall: IEC60068-2-32

Shock: IEC60068-2-27

Vibration: IEC60068-2-6

MAC address

 8K

Spanning Tree Protocol

 802.1D STP

802.1s MSTP

802.1w RSTP

Ethernet ring protection switching (ERPS)

 +

Link aggregation

 802.3ad

VLAN group (max static)

 128

VLAN type

 GVRP

Port-based

Advanced VLAN

 Asymmetric VLAN

Auto Surveillance VLAN

Voice VLAN

Number of QoS queues per port

 4

Encryption protocol supported

 SSH

802.1X access control

 +

RADIUS/TACACS+ authentication

 +

SNMP (v1/v2c/v3)

 +

LLDP

 +

Support

Version Date Type File Size
Datasheet EN - PDF 0.47mb Download
Version Description Date Type File Size
- Product Manual - PDF 2.01mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
Version Description Date
- Additional downloads - Download

Industrial Gigabit Unmanaged PoE Switch with SFP slot

  • Slide 1

  • Slide 2

Industrial Gigabit Unmanaged PoE Switch with SFP slot

DIS‑100G‑5PSW

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 4 x 100/1000BaseT PoE ports, 1 x 100/1000BaseSFP slots
  • 120 W PoE Budget
  • Unmanaged plug-and-play simplicity
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, NEMA‑TS2 Section 2, EMC

Download the datasheet.

Specs

Download the datasheet.

Type

 Unmanaged

Number of ports

 5 to 14 ports

Layer

 Layer 2

Main type of ports

 1000BASE-T Gigabit Ethernet

Type of uplink ports

 SFP

PoE options

 802.3af

802.3at

Number of PoE ports

 4

PoE power budget

 See datasheet

Fanless

 +

Form Factor

 DIN rail

Housing

 Metal

Jumbo frame

 +

Environmental

 Free Fall: IEC60068-2-32

Shock: IEC60068-2-27

Vibration: IEC60068-2-6

MAC address

 2K

Number of QoS queues per port

 4

Support

Version Date Type File Size
Datasheet EN - PDF 0.47mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 0.36mb Download
- Quick installation guide - PDF 0.24mb Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download

Industrial Gigabit Unmanaged Switch with SFP slot

  • Slide 1

  • Slide 2

Industrial Gigabit Unmanaged Switch with SFP slot

DIS‑100G‑5SW

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 4 x 100/1000Base-T ports, 1 x 100/1000BaseSFP slots
  • Unmanaged plug-and-play simplicity
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, NEMA‑TS2 Section 2, EMC

Download the datasheet.

Specs

Download the datasheet.

Type

 Unmanaged

Number of ports

 5 to 14 ports

Layer

 Layer 2

Main type of ports

 1000BASE-T Gigabit Ethernet

Type of uplink ports

 SFP

Fanless

 +

Form Factor

 DIN rail

Housing

 Metal

Jumbo frame

 +

Environmental

 Free Fall: IEC60068-2-32

Shock: IEC60068-2-27

Vibration: IEC60068-2-6

MAC address

 2K

Support

Version Date Type File Size
Datasheet EN - PDF 0.47mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 0.36mb Download
- Quick installation guide - PDF 0.24mb Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download

Industrial Gigabit Unmanaged Switch

  • Slide 1

  • Slide 2

Industrial Gigabit Unmanaged Switch

DIS‑100G‑5W

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 5x 100/1000Base T Ports
  • Unmanaged plug-and-play simplicity
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, NEMA‑TS2 Section 2, EMC

Download the datasheet.

Specs

Download the datasheet.

Type

 Unmanaged

Number of ports

 5 to 14 ports

Layer

 Layer 2

Main type of ports

 1000BASE-T Gigabit Ethernet

Type of uplink ports

 1000BASE-T Gigabit Ethernet

Fanless

 +

Form Factor

 DIN rail

Housing

 Metal

Jumbo frame

 +

Environmental

 Free Fall: IEC60068-2-32

Shock: IEC60068-2-27

Vibration: IEC60068-2-6

MAC address

 2K

Support

Version Date Type File Size
Datasheet EN - PDF 0.47mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 0.24mb Download
- Quick installation guide - PDF 0.36mb Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download
