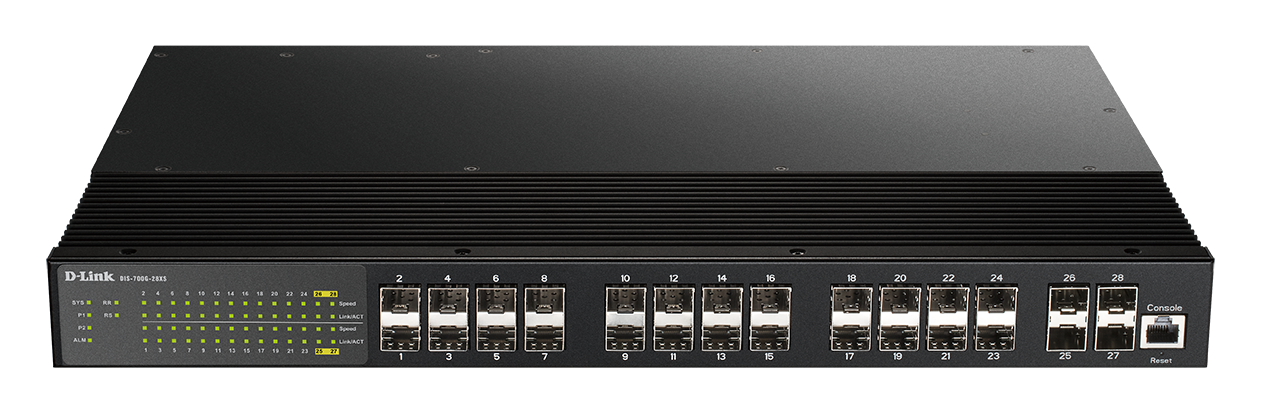

Industrial Layer 2+ Gigabit Managed Switch with 10G SFP+ slots
DIS‑700G‑28XS
-
Product Status (Revision A):
Live
Live: The product is actively being manufactured and sold.
- 24 x SFP ports, 4 x 10G SFP+ slots
- Layer 2+ management features

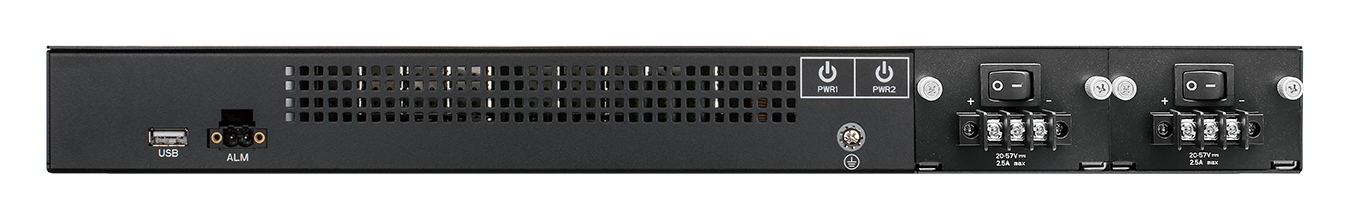

- High availability with redundant dual DC inputs
- Withstands extreme temperatures
- Certified for vibration, shock, free-fall, EMI, EMS
Specs
|
Type |
Managed |
|---|---|
|
Number of ports |
16 to 28 ports |
|
Layer |
Layer 2+ |
|
Main type of ports |
SFP |
|
Type of uplink ports |
10GbE SFP+ |
|
Fanless |
+ |
|
Form Factor |
Rackmountable |
|
Housing |
Metal |
|
Jumbo frame |
+ |
|
Environmental |
Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
|
<20ms link loss recovery |
+ |
|
MAC address |
8K |
|
Spanning Tree Protocol |
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation |
802.3ad |
|
VLAN group (max static) |
2048 |
|
VLAN type |
Port-based Protocol-based |
|
Advanced VLAN |
Double VLAN (Q-in-Q) |
|
Number of QoS queues per port |
8 |
|
CoS based on contents |
+ |
|
Bandwidth control |
1 Kbps minimum granularity |
|
Three colour marker |
1 Kbps minimum granularity |
|
Encryption protocol supported |
SSH |
|
BPDU attack protection |
+ |
|
802.1X access control |
+ |
|
RADIUS/TACACS+ authentication |
+ |
|
SNMP (v1/v2c/v3) |
+ |
