Intended for use with the DMC-1000 chassis, this redundant power supply unit acts as a fail-safe against power failure.
The DMC-1001 is a hot swappable redundant power supply that is designed for use in the DMC-1000.
The D-Link DGE-528T is a high-performance 10/100/1000Mbps copper Gigabit PCI card for desktop PC. Installable in a PC equipped with PCI expansion slots, this card turns a desktop computer into a high-bandwidth Gigabit workstation or a server running at 2000Mbps full-duplex speed.
|
Connectivity |
Gigabit Ethernet |
|---|---|
|
Interface |
PCI |
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet EN | - | 0.39mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| - | Product Manual | - | 7.94mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| - | Quick installation guide | - | 1.27mb | Download |
| Version | Description | Date | |
|---|---|---|---|
| - | Additional downloads | - | Download |
| Version | Description | Date | |
|---|---|---|---|
| - | Software | - | Download |
The DMC-515C converts 10/100Mbps 10BASE-T-100BASE-TX Fast Ethernet twisted pair signals to 100BASE-FX single-mode signals up to 15KM apart.
The DMC-515SC, DMC-530SC, and the DMC-560SC convert 10/100Mbps 10BASE-T/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet single-mode fiber signals. Maximum fiber cable distance is 15 - 60 km. 1 RJ-45 twisted-pair port and 1 fiber port (SC connector) are provided.

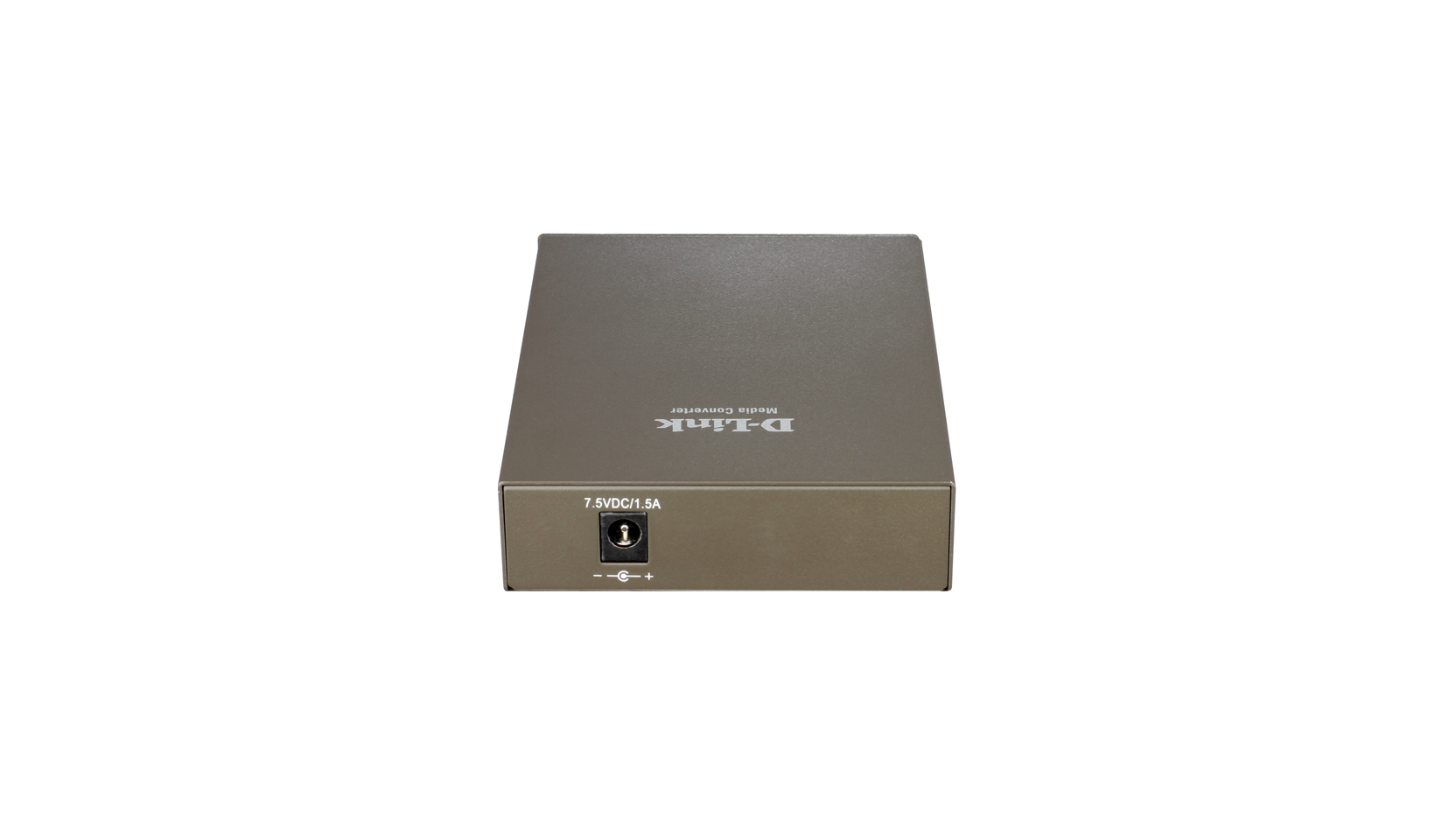

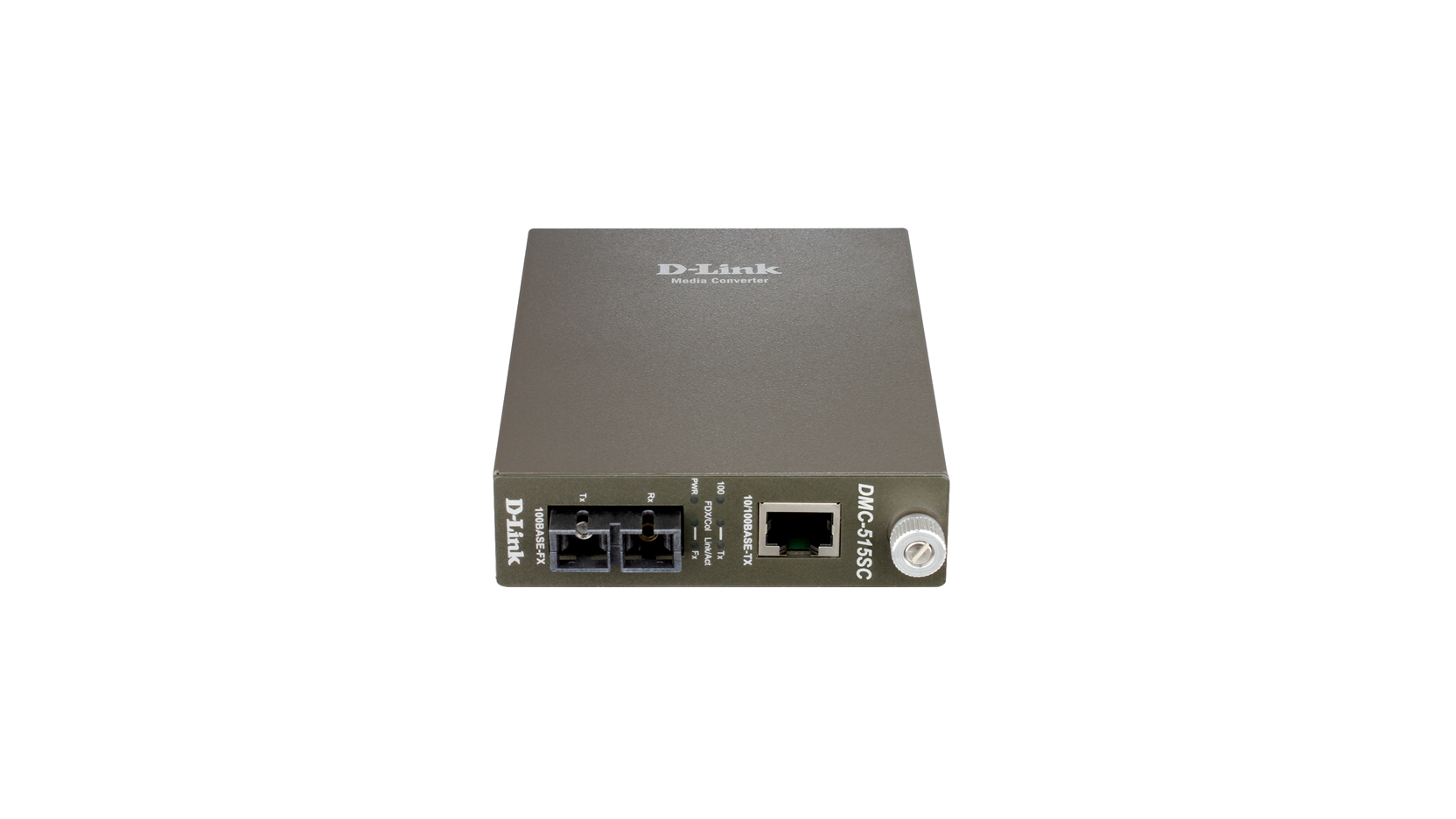

DMC-515SC: this media converter supports maximum 15 km fiber cable distance.
DMC-530SC: this media converter supports maximum 30 km fiber cable distance.
DMC-560SC: this media converter supports maximum 60 km fiber cable distance.
The media converters come with their own solid metal case housing, LED status indicators and external AC power adapters.
They can be used as stand-alone converters, or installed in a DMC-1000 chassis. In case you install them in the chassis, you will remove their metal cases and slide in their PC boards into the chassis slots. The chassis’s power supply will be used instead of the media converters’ own external AC adapters. All media converters are hot-swappable when used with the chassis.

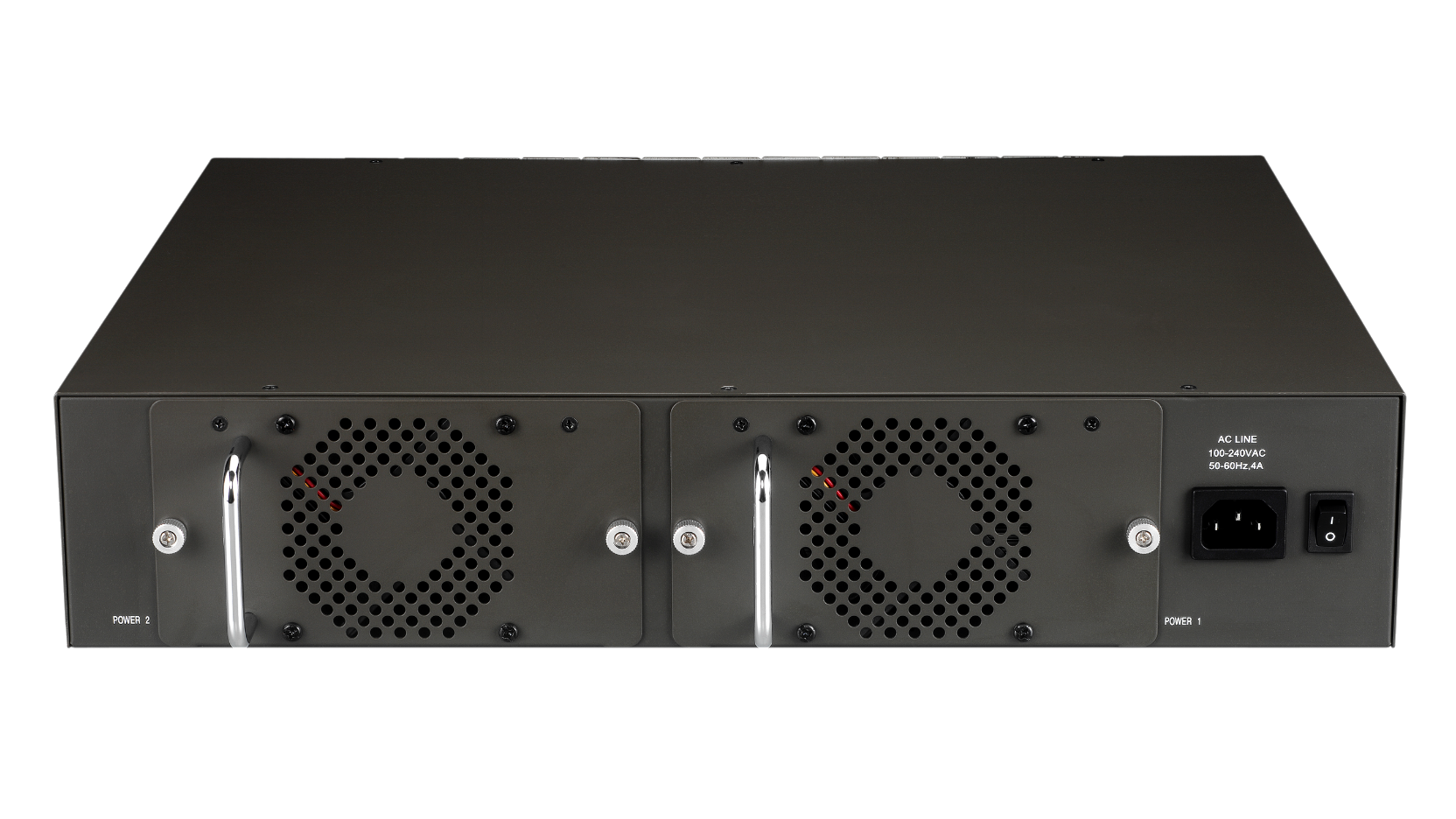

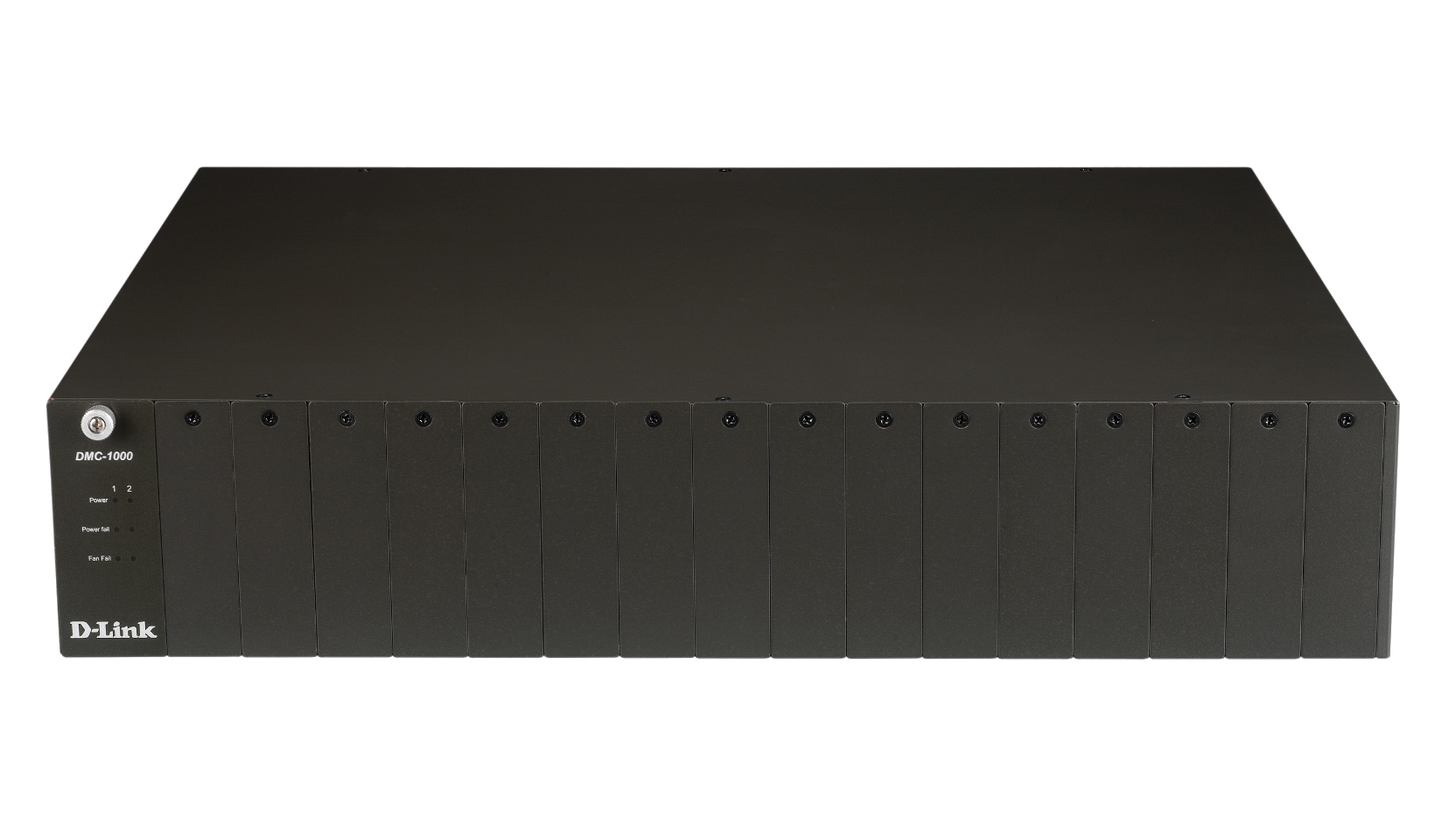

This 16-slot chassis can hold up to 16 media converters. The chassis provides 19-inch standard rack-mount housing for the media converters, the power necessary for the media converters, plus optional redundant power supplies and SNMP/web-based network management.
In simple configuration, you can start with single media converters, each equipped with its own metal case housing and AC power adapter. When your network requirements grow, you can mount this chassis in your equipment rack and install your media converters in the slots provided for by the chassis. You will remove the metal cases of the individual media converters, and insert their PC boards into the chassis slots.
Installation of the chassis in an equipment rack together with the network devices for which they provide media conversion. This provides for space saving, and the cabling will look neat.
The chassis comes with its a single universal power supply. For maximum power availability, an optional redundant power supply is available for installation in chassis.
The following media conversion solutions are available:
For fiber cables, MT-RJ and SC types of connectors are supported.
The following media converter modules can be installed in the chassis:
This Media Converter can be used by itself or installed in a chassis and converts between 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fibre signals.
The DMC-810SC converts 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fibre signals. Maximum fibre cable distance is 200 km. 1 RJ-45 port and 1 fibre port (SC type connector) are provided.
The DMC-700SC can be used as stand-alone device or as a module installed in the DMC-1000 chassis. The media converter is housed in a solid metal case and comes with status LEDs and an external AC power adapter. If you install it in the DMC-1000 chassis, remove its metal case and slide its PC board into an open slot in chassis. In this application, the chassis provides power for all media converters inside it, and the media converter’s own external AC power adapter will not be necessary.
The DMC-700SC by D-Link® is a media converter designed to connect 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Based on the IEEE 802.3ab and 802.3z standards, the DMC-700SC is designed for use with multi-mode fiber cable utilising the SC-Type connector. The DMC-700SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The DMC-700SC will transmit at extended fiber optic distances utilising multimode fiber up to 550 meters.

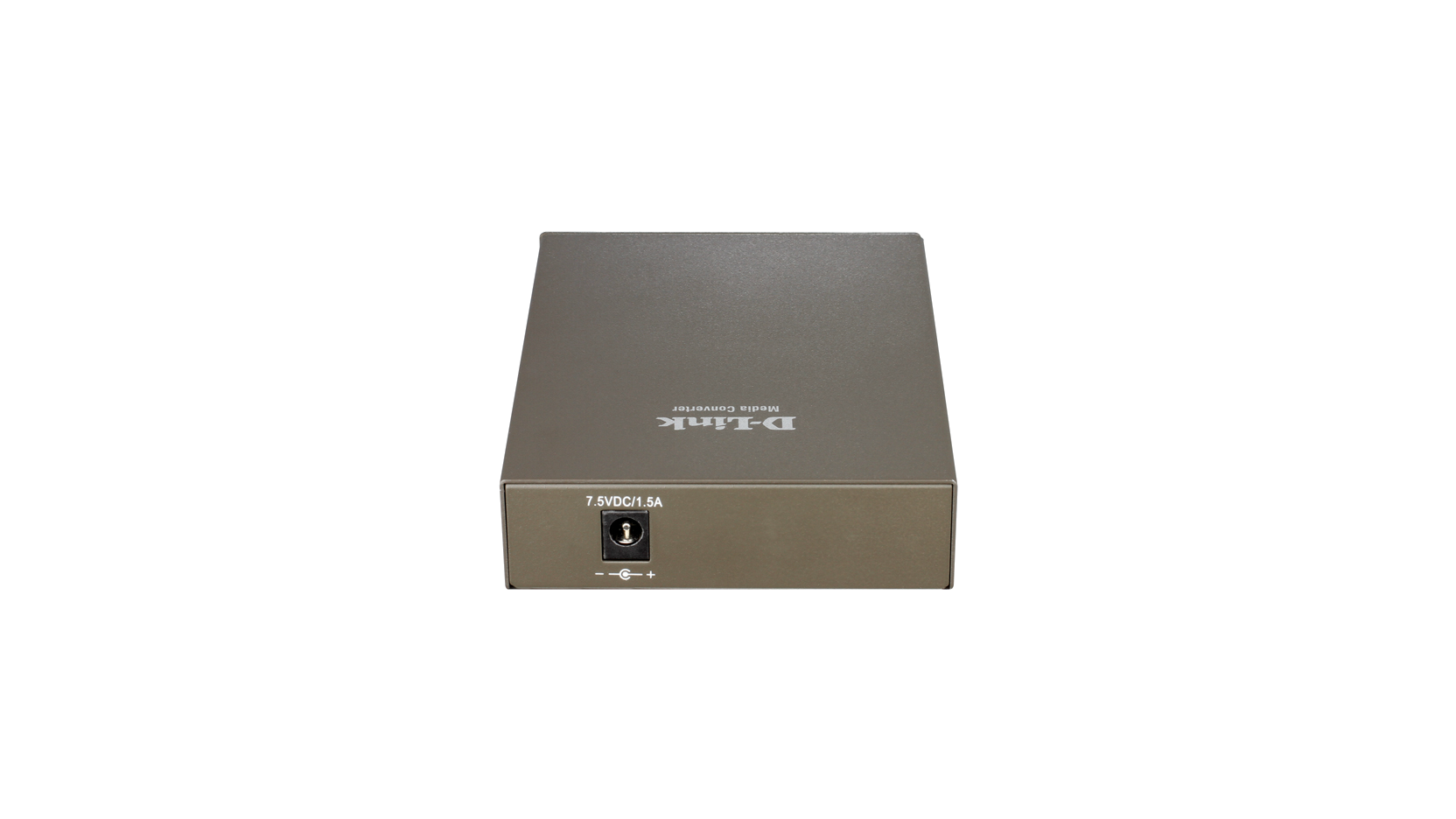

The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilising the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended fiber optic distances utilising multimode fiber up to 2 kilometers.

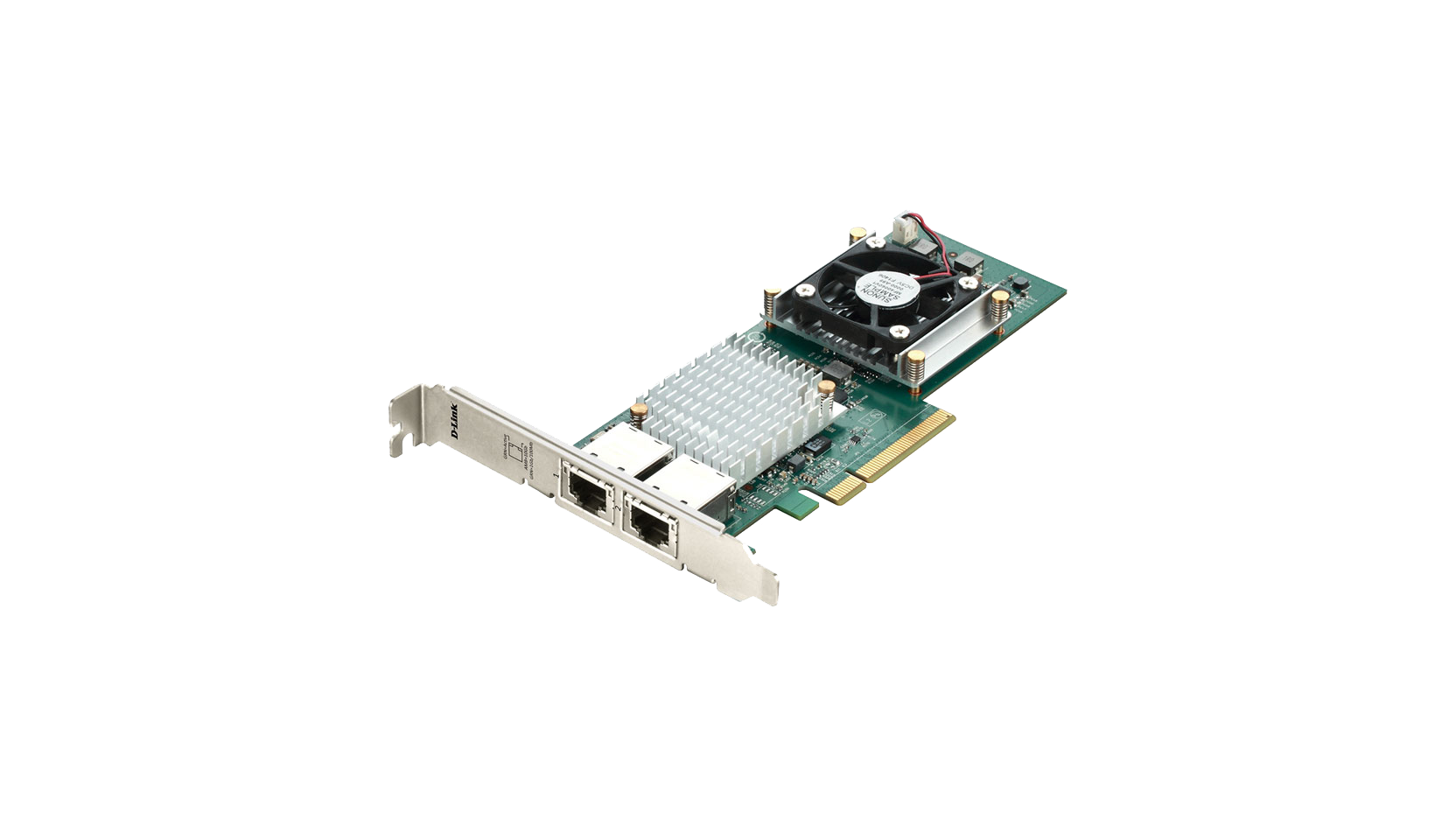

Add 10 Gigabit connectivity to your server or high-powered workstation with the D-Link DXE-820T Dual Port 10 Gigabit Ethernet PCIe Adapter. It is a high performance network adapter which combines 10GBase-T with high-speed PCI Express 2.0 x8 interface.
|
Connectivity |
10 Gigabit Ethernet |
|---|---|
|
Interface |
PCIe |
|
Number of Port(s) |
2 |
