Unified Wireless N PoE Erişim Noktası

DWL‑2600AP

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

DWL-2600AP giriş seviyesindeki bir iç mekan erişim noktası olarak işletmelerin düşük maliyetli yönetilebilir kablosuz ağlar oluşturmasını sağlamak için tasarlanmıştır.

DWL-2600AP ilk dağıtım için bağımsız modda çalışabilir ve daha sonra merkezi kablosuz LAN yönetimini sağlamak için bir D-Link Unified Wireless Switch veya Controller eklenerek tamamlanabilir.


Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless N

Frekans bandı

 Single-band

Kablosuz ağ hızı

 300 Mbps 2.4 GHz

Anten tipi

 Tümleşik çok yönlü antenler

Anten kazancı

 3 dBi - 2.4 GHz

Power-over-Ethernet

 +

Kablo portu

 1 x Fast Ethernet LAN

Konsol portu

 +

İç ortam/dış ortam

 İç ortam

Kasa tipi

 Plastik

Wireless modları

 Access Point (AP)

WDS bridge

WDS with AP

Gelişmiş özellikler

 MIMO

Maximum number of SSIDs

 16

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WPA_WPA2_PSK over WDS

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

DWS-3160

DWS-4026

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SNMP (v1, v2c, v3)

 +

CLI

 +

Telnet

 +

SSH

 +

Syslog

 +

Central management (through AP Manager II and/or D-View Wireless Control Module)

 +

Configuration group sync through AP Array (up to 8 APs)
+

Support

Version Date Type File Size
Datasheet EN - PDF 1.58mb Download
Datasheet EN - PDF 3.58mb Download
Datasheet EN - PDF 2.63mb Download
Version Description Date Type File Size
- Product Manual - PDF 9.54mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 1.13mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
Version Description Date
- Additional downloads - Download

Wireless Dual-Band Outdoor Unified Erişim Noktası

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

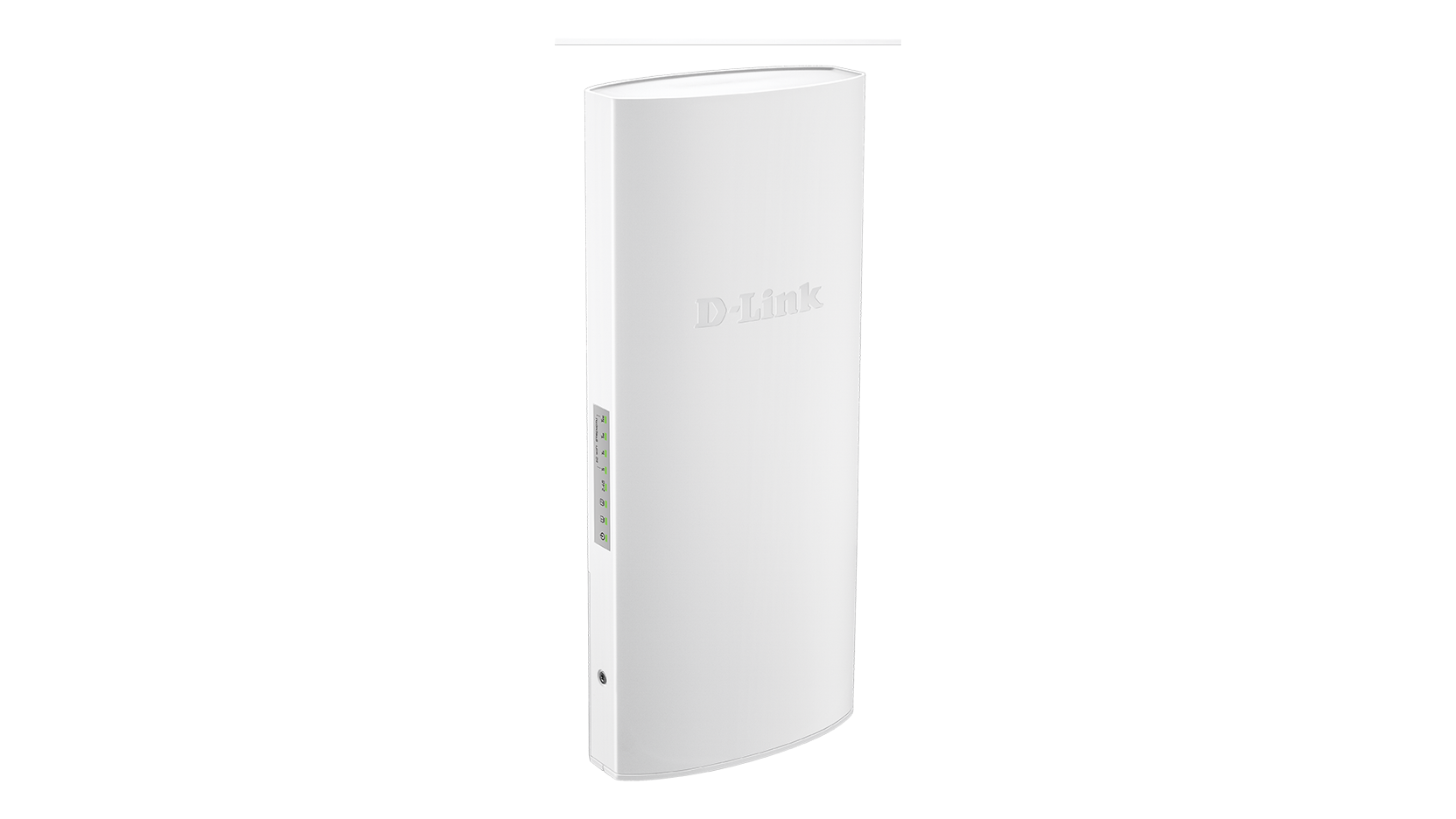

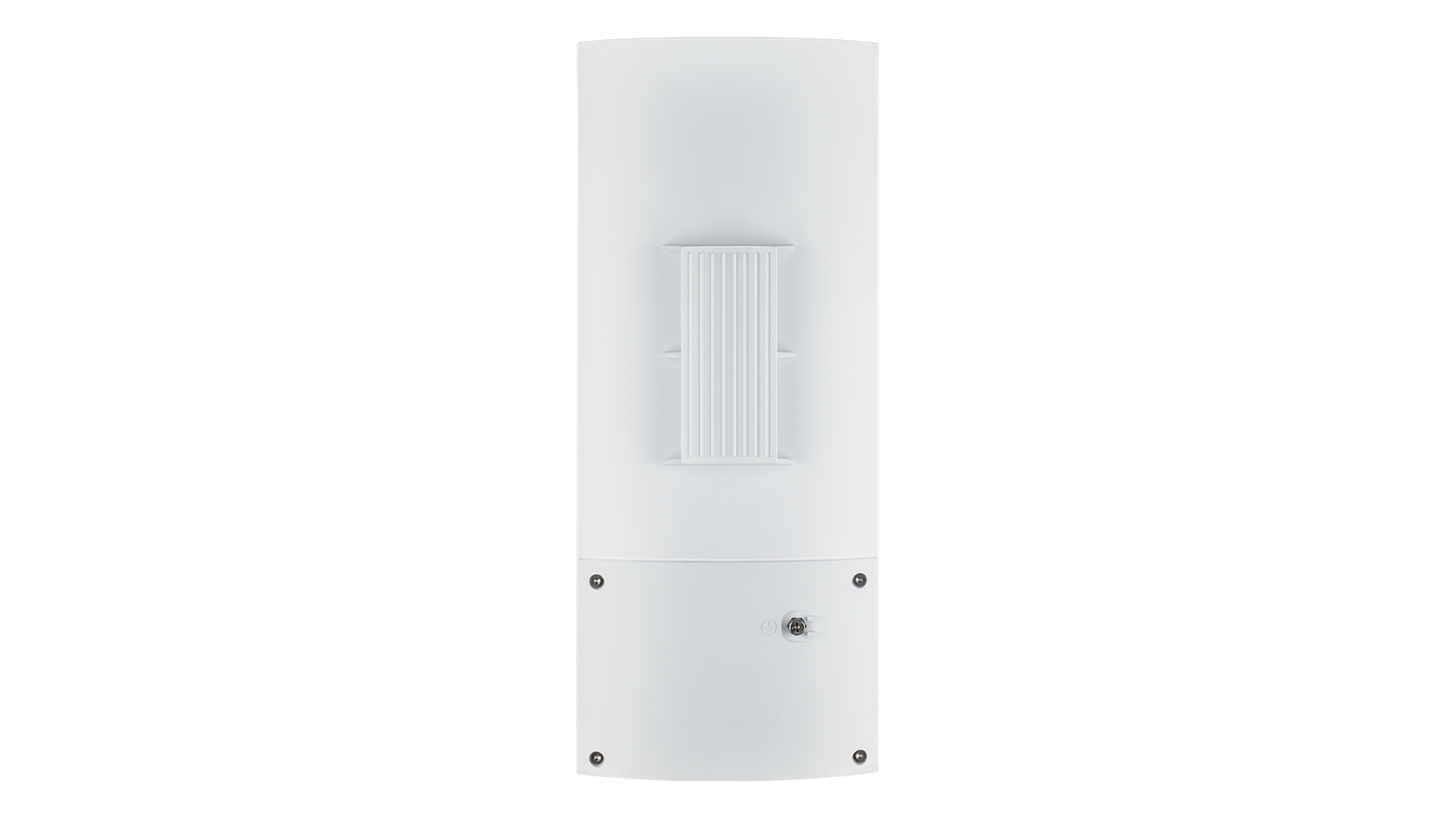

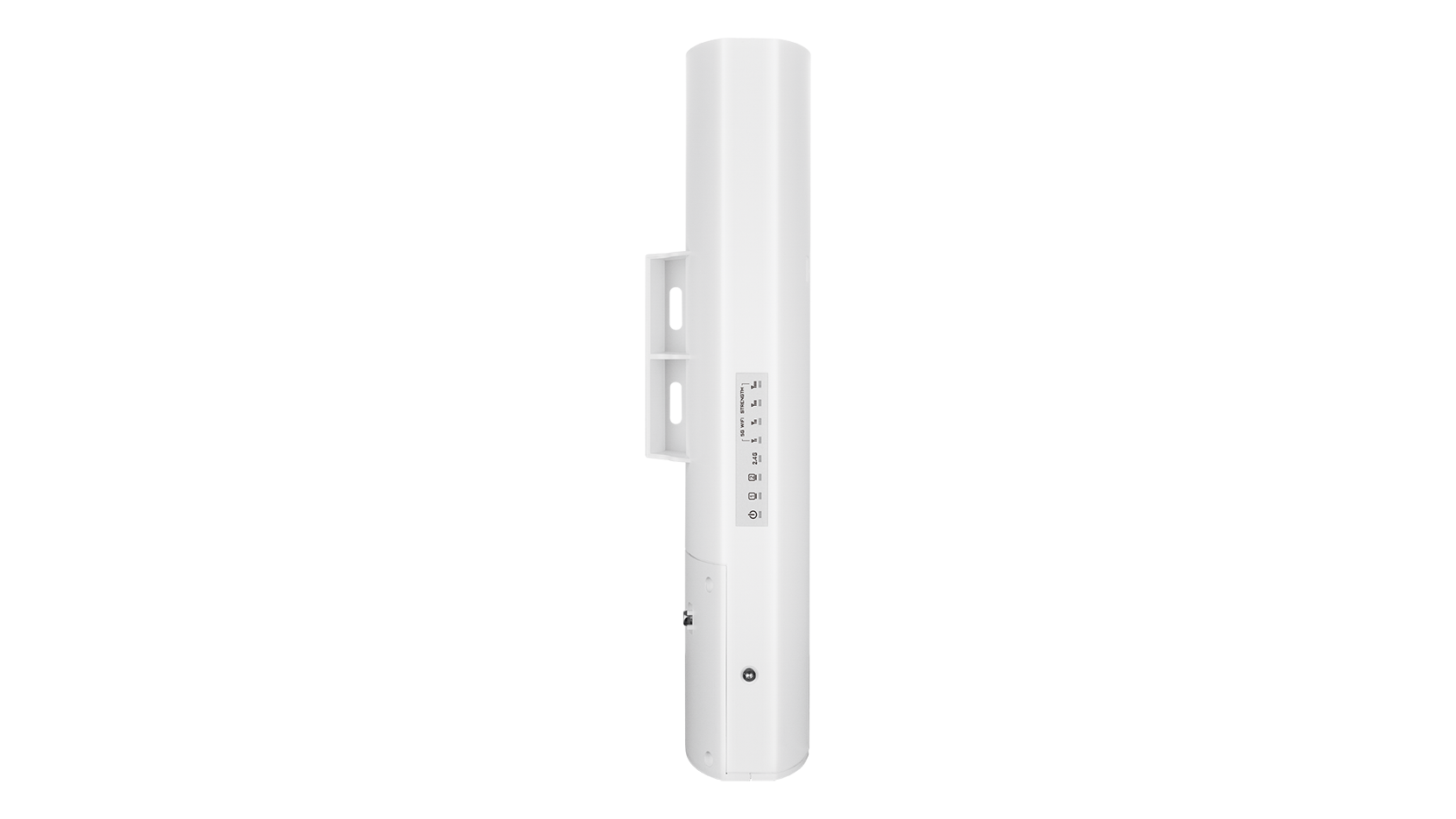

Wireless Dual-Band Outdoor Unified Erişim Noktası

DWL‑6700AP

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

DWL-6700AP, gömülü bir antene sahip şık, hava koşullarına dayanıklı bir tasarımına sahiptir. Böylece bir direğe veya duvara kolayca monte edilebilir. -30° C ile 50° C arasında çalışabilir. Sıcağa, soğuğa ve yağmura karşı dayanıklıdır. Tüm bu özellikler bu cihazı ideal bir dış mekan kablosuz erişim noktası haline getirir.


Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless N

Frekans bandı

 Simultane çift-band

Kablosuz ağ hızı

 300 Mbps 2.4 GHz

300 Mbps 5 GHz

Anten tipi

 Embedded omni-directional antennas

Embedded sector antenna

Anten kazancı

 3 dBi - 2.4 GHz

8 dBi - 5 GHz

Power-over-Ethernet

 +

Kablo portu

 2 x Fast Ethernet LAN

İç ortam/dış ortam

 Dış ortam

Kasa tipi

 Plastik

IP rating

 IP55

Wireless modları

 Access Point (AP)

WDS bridge

WDS with AP

Gelişmiş özellikler

 MIMO

Maximum number of SSIDs

 8

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WPA_WPA2_PSK over WDS

 +

WLAN partition

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

View neighbour AP information

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

DWS-3160

DWS-4026

802.1D STP

 +

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SSH

 +

Syslog
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.80mb Download
Version Description Date Type File Size
- Product Manual - PDF 5.92mb Download
- Product Manual - PDF 7.10mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 0.98mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
- Manual - Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download

Unified Wireless AC1750 Dual-Band Erişim Noktası

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

  • Slide 5

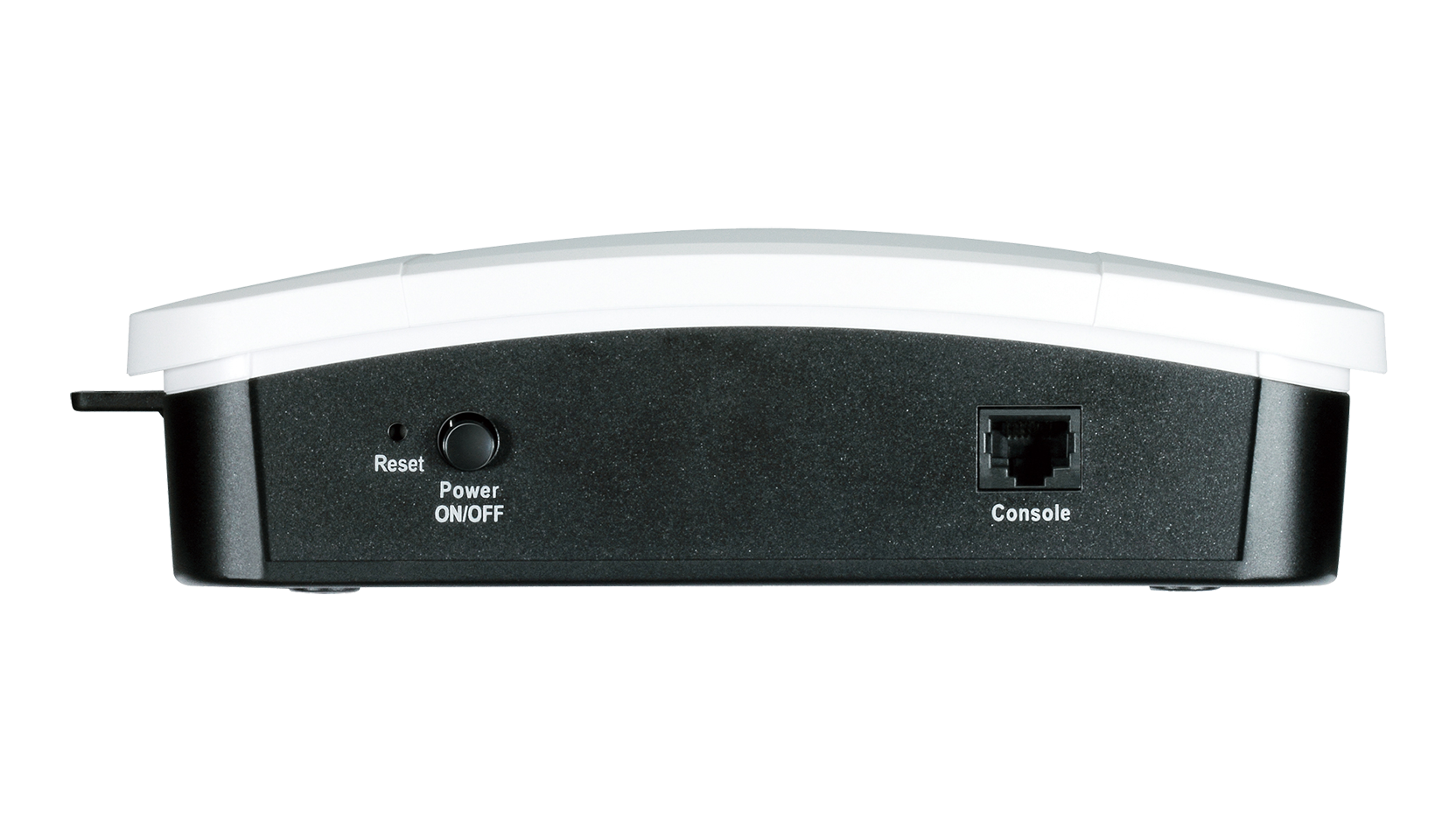

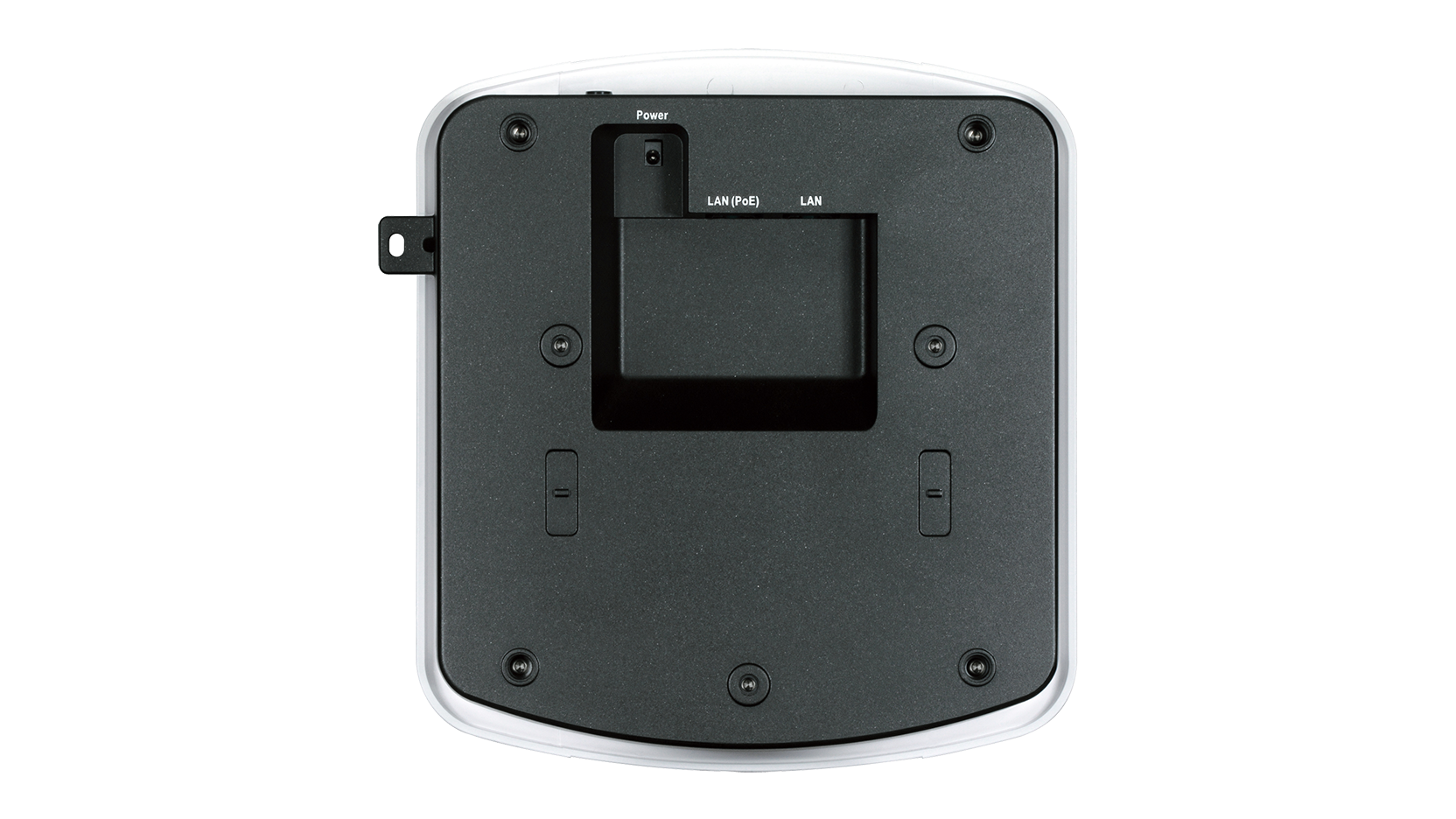

Unified Wireless AC1750 Dual-Band Erişim Noktası

DWL‑8610AP

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

DWL-8610AP, her ölçekteki işletmenin mümkün olan en hızlı kablosuz ağı kurmasını sağlayan son teknoloji ürünü bir Unified Wireless AC1750 erişim noktasıdır. Standart olarak bulunan PoE ve temiz bir endüstriyel tasarım ile DWL-8610AP, herhangi bir yere dikkat çekmeden yerleştirilebilir.


Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless AC

Frekans bandı

 Simultane çift-band

Kablosuz ağ hızı

 1300 Mbps 5 GHz

450 Mbps 2.4 GHz

Anten tipi

 Tümleşik çok yönlü antenler

Anten kazancı

 5 dBi - 2.4 GHz

6.5 dBi - 5 GHz

Power-over-Ethernet

 +

Kablo portu

 2 x Gigabit Ethernet LAN

Konsol portu



İç ortam/dış ortam

 İç ortam

Kasa tipi

 Metal

Plastic

Plenum rated (UL-2043)

 +

Wireless modları

 Access Point (AP)

WDS bridge

WDS with AP

Gelişmiş özellikler

 MIMO

Maximum number of SSIDs

 16 per radio

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WEP 64/128 bit

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WPA_WPA2_PSK over WDS

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

DWS-3160

DWS-4026

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SNMP (v1, v2c, v3)

 +

CLI

 +

Telnet

 +

SSH

 +

Syslog

 +

Configuration group sync through AP Array (up to 8 APs)
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.32mb Download
Version Description Date Type File Size
- Product Manual - PDF 7.10mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download

Wireless AC1200 Dual-Band Unified Erişim Noktası

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

Wireless AC1200 Dual-Band Unified Erişim Noktası

DWL‑6610AP

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

DWL-6610AP, her büyüklükteki işletmenin mümkün olan en hızlı kablosuz ağı oluşturmasını sağlayan uygun fiyatlı, Unified Wireless AC1200 erişim noktasıdır. Şık bir tasarımla DWL-6610AP, her yere yerleştirilebilir ve gizlenmiş gibi durur.


Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless AC

Frekans bandı

 Simultane çift-band

Kablosuz ağ hızı

 300 Mbps 2.4 GHz

867 Mbps 5 GHz

Anten tipi

 Tümleşik çok yönlü antenler

Anten kazancı

 3.5 dBi - 2.4 GHz

5 dBi - 5 GHz

Power-over-Ethernet

 +

Kablo portu

 1 x Gigabit Ethernet LAN

Konsol portu

 +

İç ortam/dış ortam

 İç ortam

Kasa tipi

 Plastik

Plenum rated (UL-2043)

 +

Wireless modları

 Access Point (AP)

WDS bridge

Gelişmiş özellikler

 MIMO

Maximum number of SSIDs

 16 per radio

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

DWS-3160

DWS-4026

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SNMP (v1, v2c, v3)

 +

Telnet

 +

SSH

 +

Configuration group sync through AP Array (up to 8 APs)
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.59mb Download
Datasheet EN - PDF 0.81mb Download
Version Description Date Type File Size
- Product Manual - PDF 7.10mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
Version Description Date
- Additional downloads - Download

Wireless AC1200 Dual‑Band Dış Mekan Unified Erişim Noktası

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

  • Slide 5

Wireless AC1200 Dual‑Band Dış Mekan Unified Erişim Noktası

DWL‑8710AP

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

DWL-8710AP, özellikle ofis ve kampüs gibi ortamlarda ağ dağıtımı için tasarlanmış bir dış mekan çift bant Wireless AC1200 erişim noktasıdır. Son derece yönetilebilir olan ve çarpıcı derecede yüksek hızlar sunan DWL-8710AP, mevcut bir ağ kurulumuna sorunsuz bir şekilde entegre edilebilir ve gelecekteki talepleri karşılamak için kolayca ölçeklendirilebilir.


Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless AC

Frekans bandı

 Simultane çift-band

Kablosuz ağ hızı

 300 Mbps 2.4 GHz

867 Mbps 5 GHz

Anten tipi

 4 adet sökülebilir çok yönlü anten

Anten kazancı

 5 dBi - 2.4 GHz

7 dBi - 5 GHz

Power-over-Ethernet

 +

Kablo portu

 2 x Gigabit Ethernet LAN

İç ortam/dış ortam

 Dış ortam

Kasa tipi

 Metal

Plastic

IP rating

 IP67

Wireless modları

 Access Point (AP)

WDS bridge

Gelişmiş özellikler

 MIMO

Maximum number of SSIDs

 16 per radio

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

DWS-3160

DWS-4026

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SNMP (v1, v2c, v3)

 +

Telnet

 +

SSH

 +

Configuration group sync through AP Array (up to 8 APs)
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.46mb Download
Version Description Date Type File Size
- Product Manual - PDF 7.10mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 2.15mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download

Wireless Selectable Dual-Band Unified Erişim Noktası

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

Wireless Selectable Dual-Band Unified Erişim Noktası

DWL 3610AP

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

DWL-3610AP Wireless Selectable Dual-Band Unified Erişim Noktası, orta ve büyük ölçekli Wi-Fi ağları için benzersiz bant genişliği ve esneklik sağlar. Cihaz küçük ve orta ölçekli işletmeler için tasarlanmıştır. Çift bant desteği ile DWL-3610AP, ağınız için en uygun bandı seçmenizi sağlar.


Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless N

Frekans bandı

 Dual-band selectable

Kablosuz ağ hızı

 300 Mbps 2.4 GHz

867 Mbps 5 GHz

Anten tipi

 Tümleşik çok yönlü antenler

Anten kazancı

 3 dBi - 2.4 GHz

3 dBi - 5 GHz

Power-over-Ethernet

 +

Kablo portu

 1 x Gigabit Ethernet LAN

Konsol portu

 +

İç ortam/dış ortam

 İç ortam

Kasa tipi

 Plastik

Wireless modları

 Access Point (AP)

WDS bridge

WDS with AP

Gelişmiş özellikler

 MIMO

Maximum number of SSIDs

 16

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WEP 64/128 bit

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WPA_WPA2_PSK over WDS

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

DWS-3160

DWS-4026

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SNMP (v1, v2c, v3)

 +

CLI

 +

Telnet

 +

SSH

 +

Syslog

 +

Configuration group sync through AP Array (up to 8 APs)
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.60mb Download
Version Description Date Type File Size
- Product Manual - PDF 7.10mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 1.50mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
Version Description Date
- Additional downloads - Download

Wireless AC1200 DualBand Unified Erişim Noktası

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

  • Slide 5

Wireless AC1200 DualBand Unified Erişim Noktası

DWL‑6610APE

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

DWL-6610APE Wireless AC1200 Çift Bantlı Unified Erişim Noktası, küçük ve orta ölçekli işletmeler için tasarlanmıştır. Orta ve büyük ölçekli Wi-Fi ağları için benzersiz bant genişliği ve esneklik sağlar. 5 GHz bandında en son 802.11ac teknolojisine sahip DWL-6610APE, daha fazla cihazı ağa bağlamanıza ve kablosuz istemcileriniz için daha fazla verim almanıza olanak tanır.


Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless AC

Frekans bandı

 Simultane çift-band

Kablosuz ağ hızı

 300 Mbps 2.4 GHz

867 Mbps 5 GHz

Anten tipi

 4 adet sökülebilir çok yönlü anten

Anten kazancı

 3 dBi - 2.4 GHz

4 dBi - 5 GHz

Power-over-Ethernet

 +

Kablo portu

 1 x Gigabit Ethernet LAN

İç ortam/dış ortam

 İç ortam

Kasa tipi

 Plastik

Plenum rated (UL-2043)

 +

Wireless modları

 Access Point (AP)

WDS bridge

WDS with AP

Wireless client

Gelişmiş özellikler

 MIMO

Maximum number of SSIDs

 16 per radio

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WEP 64/128 bit

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WPA_WPA2_PSK over WDS

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

DWS-3160

DWS-4026

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SNMP (v1, v2c, v3)

 +

CLI

 +

Telnet

 +

SSH

 +

Syslog

 +

Configuration group sync through AP Array (up to 8 APs)
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.49mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 1.10mb Download
- Quick installation guide - PDF 1.11mb Download
Version Description Date
- Additional downloads - Download

Akıllı Antenli Wireless AC1300 Wave 2 Dual-Band Unified Erişim Noktası

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

  • Slide 5

  • Slide 6

Akıllı Antenli Wireless AC1300 Wave 2 Dual-Band Unified Erişim Noktası

DWL‑6620APS

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 802.11ac Wave 2, 1.3 Gbps* hıza kadar
  • 2x2 tümleşik D-Link Akıllı Anten
  • Erişim noktası başına 32'ye kadar dinamik VLAN
  • Multi-User Multiple-Input Multiple-Output (MU-MIMO)
  • Quality of Service (QoS)
  • Link aggregation

Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless AC Wave 2

Frekans bandı

 Simultane çift-band

Kablosuz ağ hızı

 400 Mbps 2.4 GHz

867 Mbps 5 GHz

Anten tipi

 Embedded smart antenna

Power-over-Ethernet

 +

Kablo portu

 2 x Gigabit Ethernet LAN

İç ortam/dış ortam

 İç ortam

Kasa tipi

 Plastik

Plenum rated (UL-2043)

 +

Wireless modları

 Access Point (AP)

Gelişmiş özellikler

 MU-MIMO

Smart Antenna

SmartBeam

SmartConnect band optimisation

Maximum number of SSIDs

 16 per radio

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SNMP (v1, v2c, v3)

 +

Telnet

 +

SSH
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.85mb Download
Version Description Date Type File Size
- Product Manual - PDF 7.10mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 1.08mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
Version Description Date
- Additional downloads - Download

Wireless AC2200 Wave 2 Tri-Band Unified Erişim Noktası

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

  • Slide 5

  • Slide 6

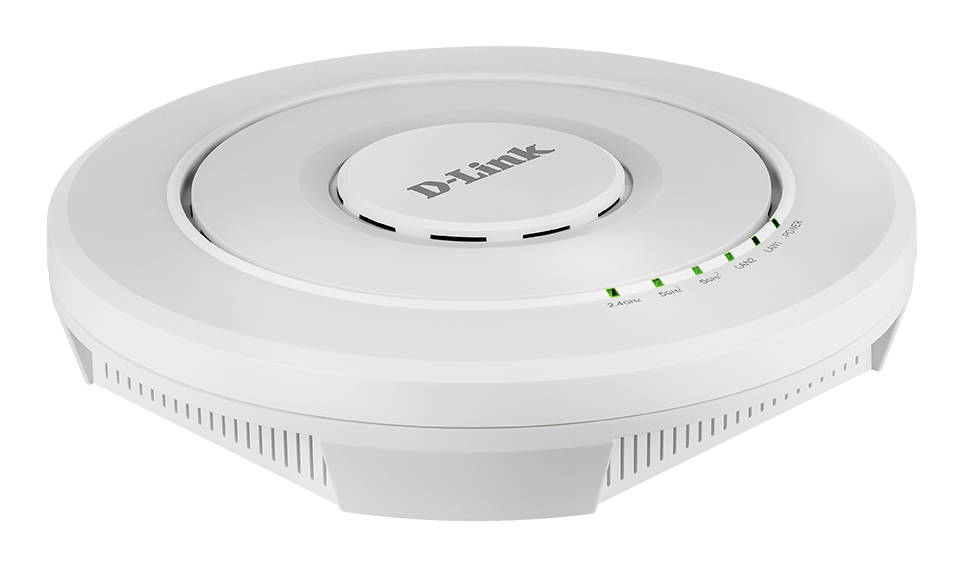

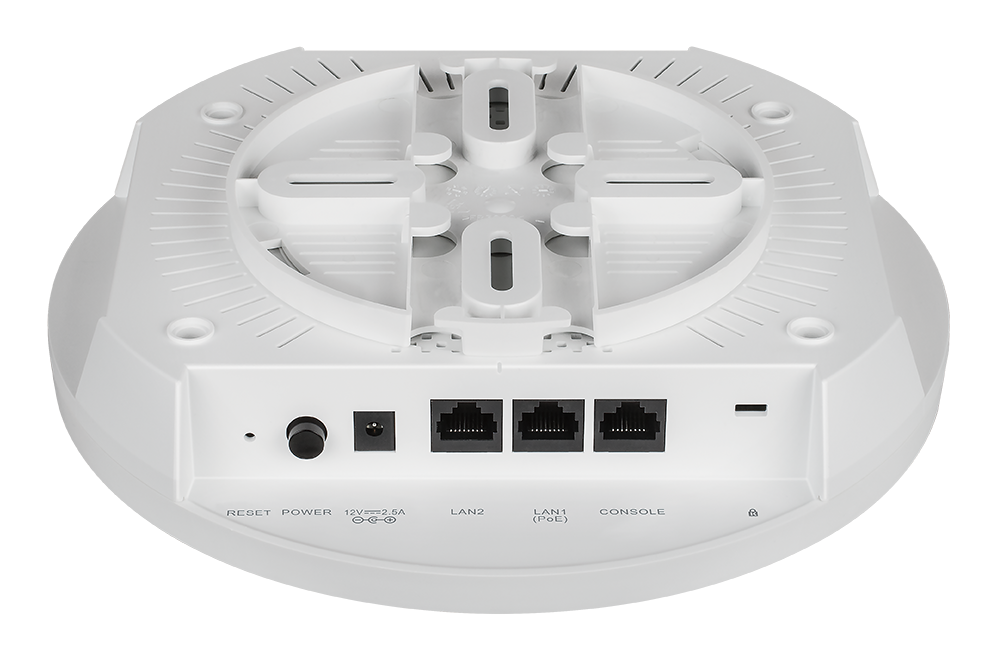

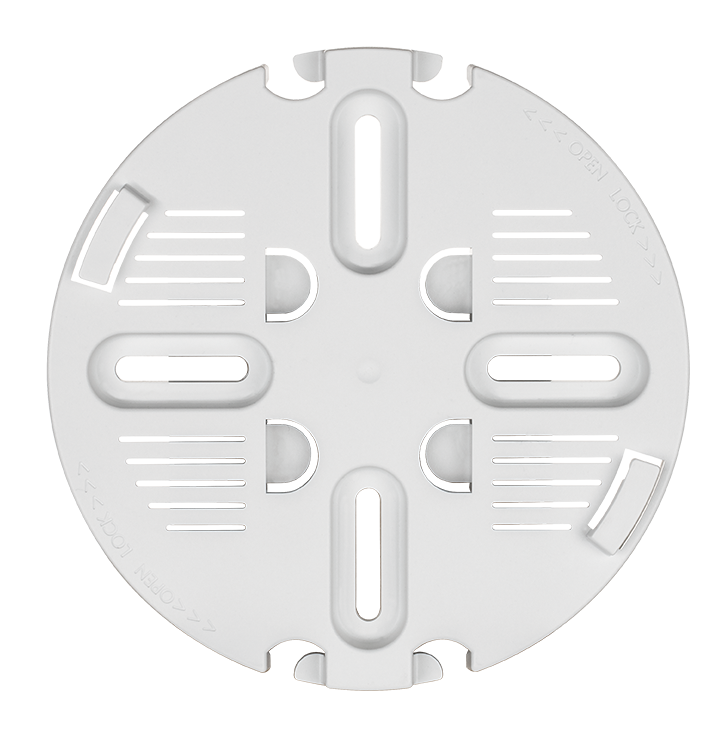

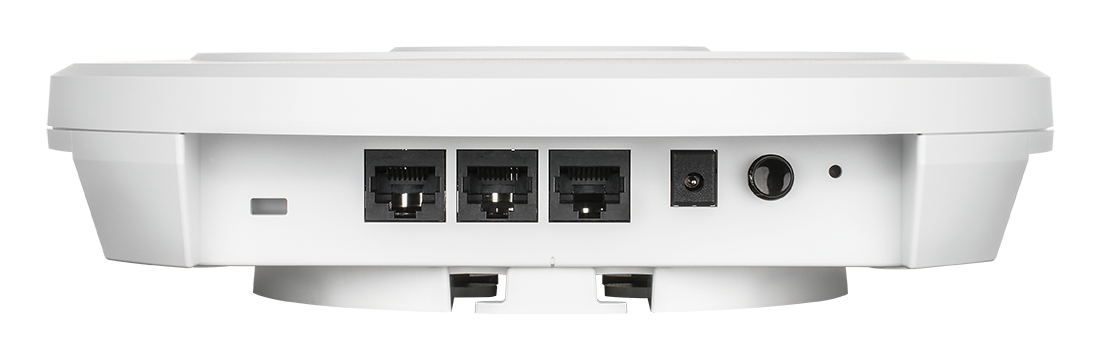

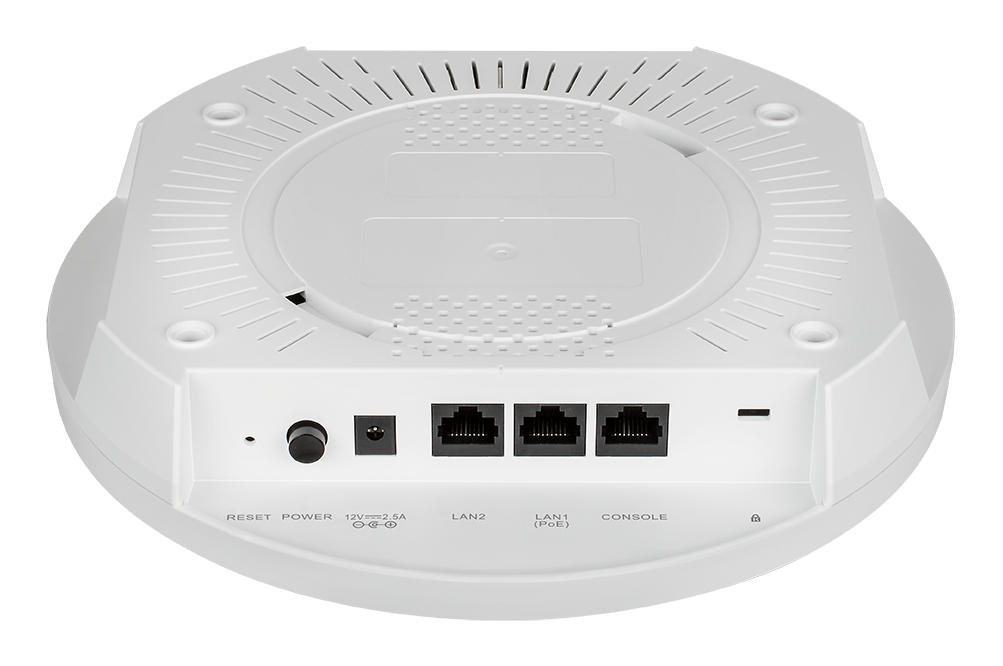

Wireless AC2200 Wave 2 Tri-Band Unified Erişim Noktası

DWL‑7620AP

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 802.11ac Wave 2, Tri-Band, 2.2 Gbps* 'ye kadar
  • 2 tümleşik çok yönlü anten
  • 2 Internal Omnidirectional Antennas
  • Erişim noktası başına 64'e kadar dinamik VLAN
  • 802.11k Fast Roaming1, MU-MIMO ve QoS with WMM
  • Link Aggregation2

Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless AC Wave 2

Frekans bandı

 Tri-band simultane

Kablosuz ağ hızı

 2 x 867 Mbps 5 GHz

400 Mbps 2.4 GHz

Anten tipi

 Tümleşik çok yönlü antenler

Anten kazancı

 3 dBi - 2.4 GHz

4 dBi - 5 GHz

Power-over-Ethernet

 +

Kablo portu

 2 x Gigabit Ethernet LAN

Konsol portu

 +

İç ortam/dış ortam

 İç ortam

Kasa tipi

 Plastik

Plenum rated (UL-2043)

 +

Wireless modları

 Access Point (AP)

Gelişmiş özellikler

 MU-MIMO

SmartBeam

Maximum number of SSIDs

 16 per radio

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WPA_WPA2_PSK over WDS

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

802.1D STP

 +

IPv6

 +

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SNMP (v1, v2c, v3)

 +

CLI

 +

Telnet

 +

SSH

 +

Syslog
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.46mb Download
Version Description Date Type File Size
- Product Manual - PDF 7.10mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 1.03mb Download
- Quick installation guide - PDF 1.02mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
Version Description Date
- Additional downloads - Download

Wireless AC2600 Wave 2 Dual-Band Unified Erişim Noktası

  • Slide 1

  • Slide 2

  • Slide 3

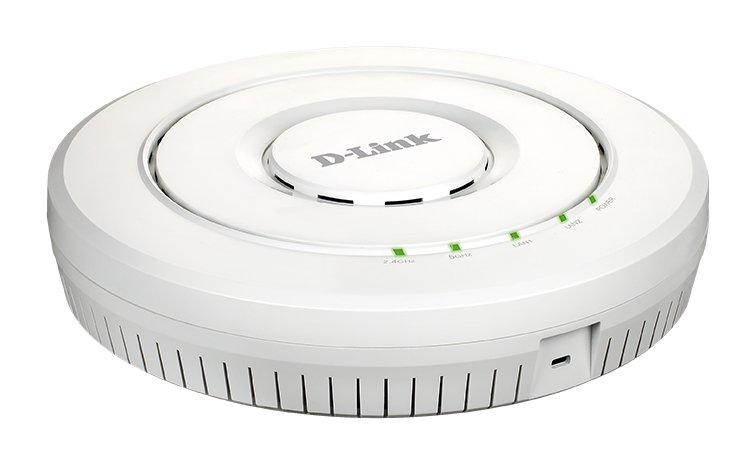

Wireless AC2600 Wave 2 Dual-Band Unified Erişim Noktası

DWL‑8620AP

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.
  • 802.11ac Wave 2, Dual-Band, 2.5 Gbps2 kadar
  • 2 tümleşik çok yönlü anten
  • Erişim noktası başına 64'e kadar dinamik VLAN
  • 802.11k Fast Roaming1, MU-MIMO ve WMM'li QoS
  • Link Aggregation

Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless AC Wave 2

Frekans bandı

 Simultane çift-band

Kablosuz ağ hızı

 1733 Mbps 5 GHz

800 Mbps 2.4 GHz

Anten tipi

 Tümleşik çok yönlü antenler

Anten kazancı

 3 dBi - 2.4 GHz

4 dBi - 5 GHz

Power-over-Ethernet

 +

Kablo portu

 2 x Gigabit Ethernet LAN

Konsol portu

 +

İç ortam/dış ortam

 İç ortam

Kasa tipi

 Plastik

Plenum rated (UL-2043)

 +

Wireless modları

 Access Point (AP)

WDS bridge

WDS with AP

Wireless client

Wireless extender

Gelişmiş özellikler

 MU-MIMO

Maximum number of SSIDs

 16 per radio

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SNMP (v1, v2c, v3)

 +

CLI

 +

Telnet

 +

SSH

 +

Syslog
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.58mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 1.03mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
Version Description Date
- Additional downloads - Download
