Wireless Selectable Dual-Band Unified Erişim Noktası

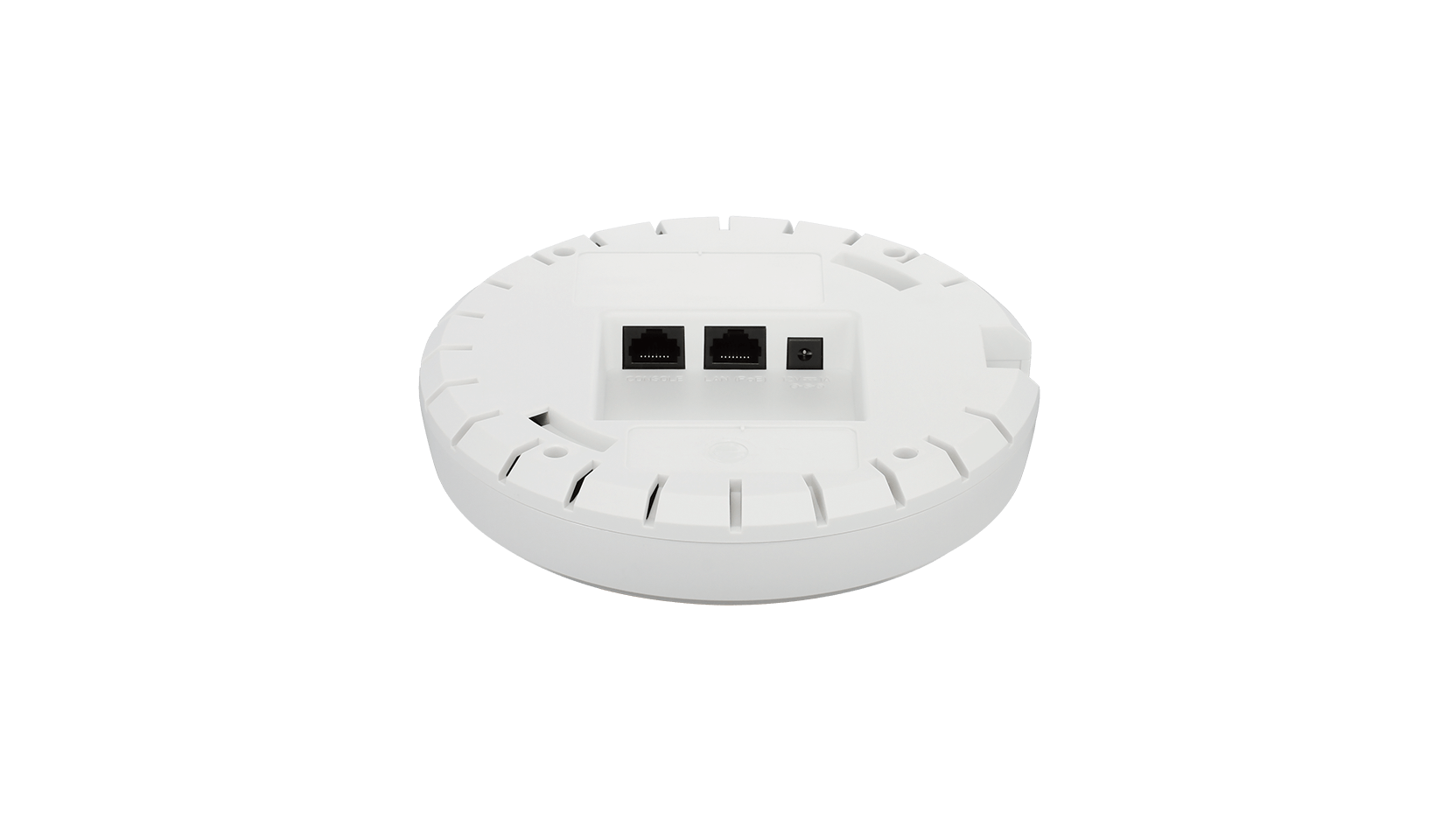

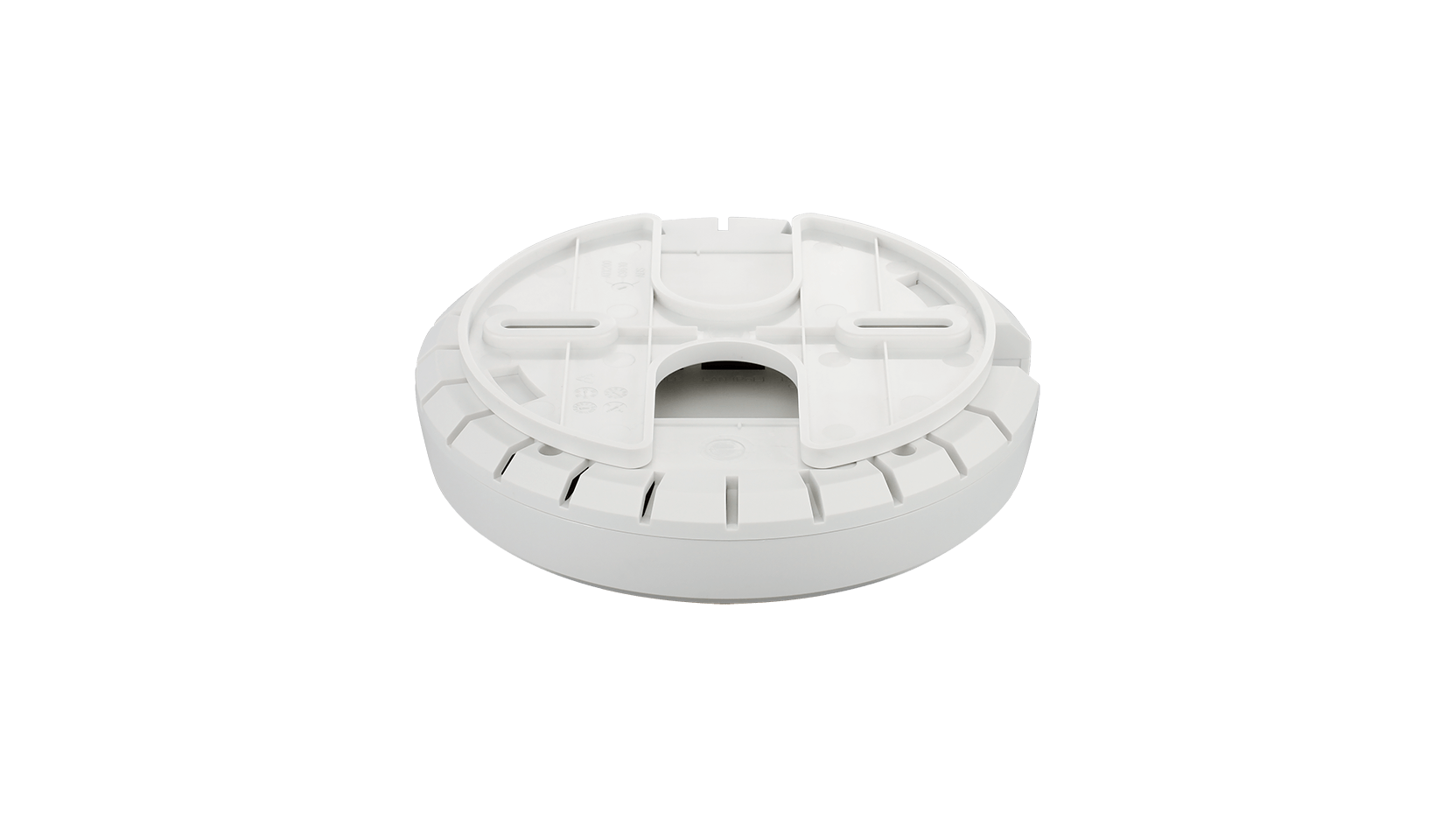

DWL 3610AP

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

DWL-3610AP Wireless Selectable Dual-Band Unified Erişim Noktası, orta ve büyük ölçekli Wi-Fi ağları için benzersiz bant genişliği ve esneklik sağlar. Cihaz küçük ve orta ölçekli işletmeler için tasarlanmıştır. Çift bant desteği ile DWL-3610AP, ağınız için en uygun bandı seçmenizi sağlar.


Download the datasheet.

Specs

Download the datasheet.

Tip

 Hardware-managed AP

Kablosuz ağ standardı

 Wireless N

Frekans bandı

 Dual-band selectable

Kablosuz ağ hızı

 300 Mbps 2.4 GHz

867 Mbps 5 GHz

Anten tipi

 Tümleşik çok yönlü antenler

Anten kazancı

 3 dBi - 2.4 GHz

3 dBi - 5 GHz

Power-over-Ethernet

 +

Kablo portu

 1 x Gigabit Ethernet LAN

Konsol portu

 +

İç ortam/dış ortam

 İç ortam

Kasa tipi

 Plastik

Wireless modları

 Access Point (AP)

WDS bridge

WDS with AP

Gelişmiş özellikler

 MIMO

Maximum number of SSIDs

 16

Otomatik kanal seçimi

 +

WMM-PS/802.11e (U-APSD)

 +

Wi-Fi scheduler

 +

AP traffic load balance

 +

L2 roaming

 +

WEP 64/128 bit

 +

WPA/WPA2-Personal/Enterprise

 +

TKIP/AES şifreleme

 +

WPA_WPA2_PSK over WDS

 +

WLAN partition

 +

SSID broadcast disable

 +

Rogue AP detection

 +

Station isolation

 +

MAC adresi filtreleme

 +

802.1X authentication

 +

Wireless controller/unified switch managed features

 AP load balance

Auto-channel, auto-RF management

Captive portal

L2/L3 fast roaming

Rogue AP mitigation

View neighbour AP information

WIDS/WIPS

Supported D-Link Wireless Controllers/Unified Switches

 DWC-1000

DWC-2000

DWS-3160

DWS-4026

Yönetim platformu

 Hardware controller: DWC/DWS Series

WEB

 +

SNMP (v1, v2c, v3)

 +

CLI

 +

Telnet

 +

SSH

 +

Syslog

 +

Configuration group sync through AP Array (up to 8 APs)
+
