Wireless Kontrolör

  • Slide 1

  • Slide 2

  • Slide 3

Wireless Kontrolör

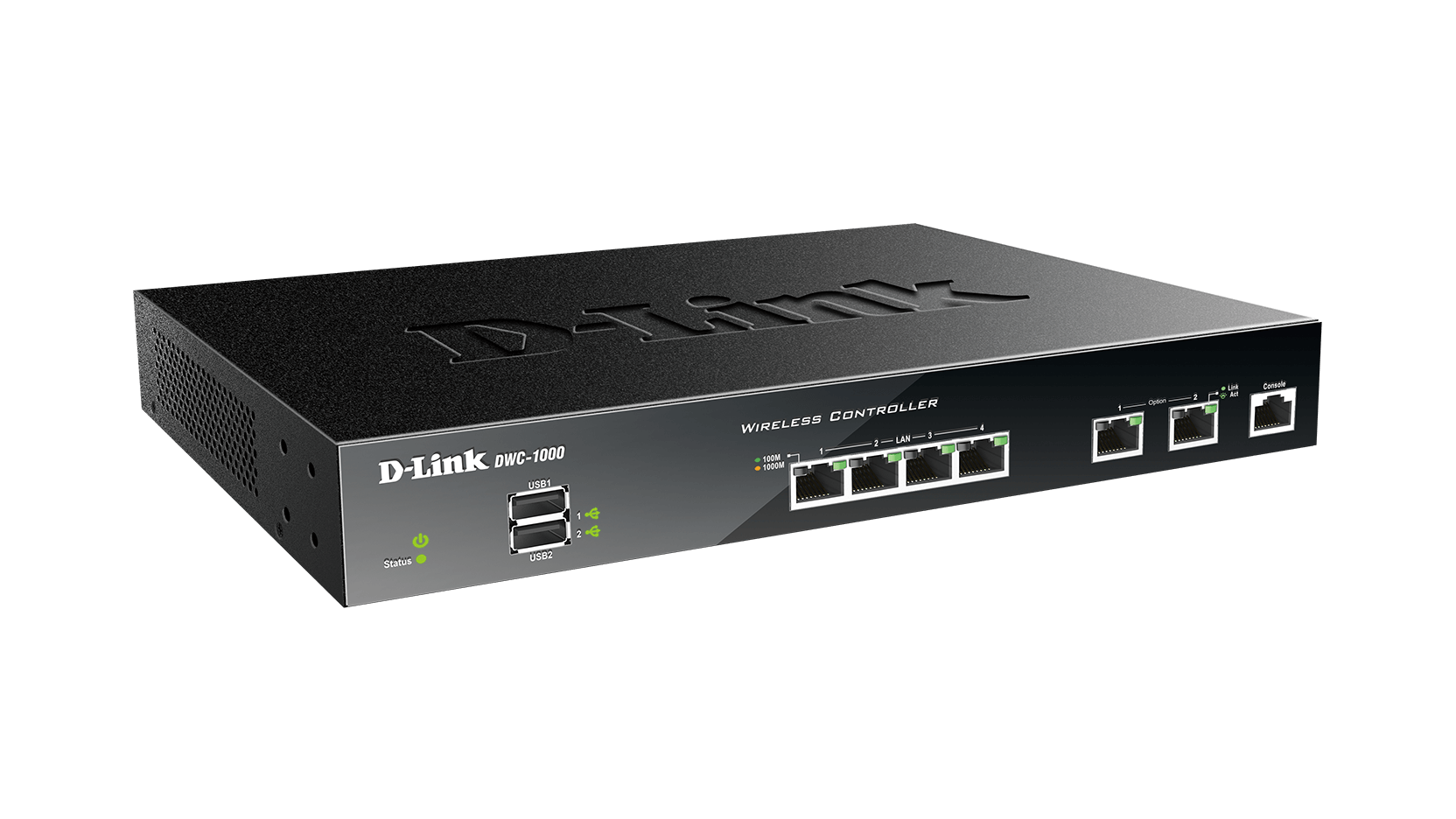

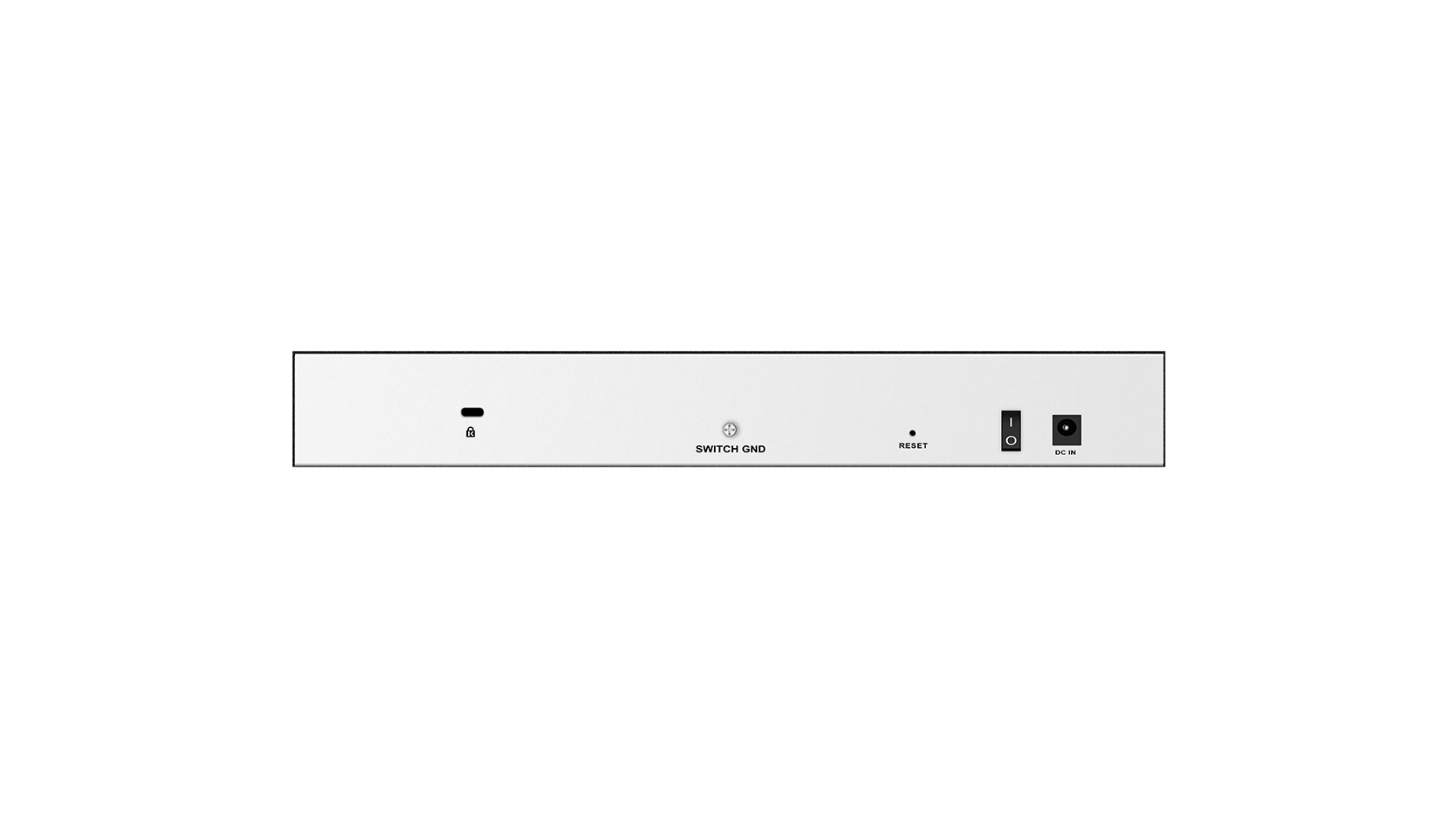

DWC‑1000

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

DWC-1000 D-Link Wireless Kontrolör, kablosuz ağları yönetmek ve yapılandırmak için kullanımı kolay, ölçeklenebilir bir çözüm arayan kampüsler, zincir oluşumların şubeleri ve küçük ve orta ölçekli işletmeler (KOBİ) için geliştirilmiş merkezi bir kablosuz LAN yöneticisidir.


Download the datasheet.

Specs

Download the datasheet.

Port sayısı

 5 - 14 port

Layer

 Layer 3

Baskın port türü

 1000BASE-T Gigabit Ethernet

Uplink port tipi

 1000BASE-T Gigabit Ethernet

Yönetim platformu

 Hardware

Access point management - number supported per unit (default/upgradeable)

 6/24 APs

Desteklenen erişim noktaları

 DWL-2600AP

DWL-3600AP

DWL-3610AP

DWL-6600AP

DWL-6610AP

DWL-6700AP

DWL-8600AP

DWL-8610AP

DWL-8710AP

Maximum number of device clustering per group

 4

Access point management - number supported per cluster (default/upgradeable)

 24/96

AP auto discovery and monitoring

 +

AP authentication by local database and external RADIUS

 +

Auto channel and power management

 +

Centralised AP firmware upgrade

 +

Fast roaming

 L2

WPA/WPA2-personal/enterpise

 +

TKIP/AES şifreleme

 +

Rogue AP/Client detection and mitigation

 +

WIDS

 +

VLAN group (max static)

 255

VLAN type

 GVRP

MAC-based

Port-based

Protocol-based

Advanced VLAN

 Double VLAN (Q-in-Q)

Voice VLAN

Routing table size

 100

Static route for IPv4/IPv6

 IPv4 - 100

RIP v1/v2

 +

OSPF

 +

Number of QoS queues per port

 4

CoS based on contents

 +

Bandwidth control

 64 Kbps minimum granularity

WMM

 +

ACL based on packet contents

 +

Time-based ACL

 +

Encryption protocol supported

 SSL (v1/v2/v3)

802.1X access control

 +

External user databae - POP3 and LDAP

 +

RADIUS/TACACS+ authentication

 +

Captive portal

 +

SNMP (v1/v2c/v3)

 +

VPN upgrade
+

Support

Version Date Type File Size
Datasheet EN - PDF 3.58mb Download
Datasheet EN - PDF 2.63mb Download
Datasheet EN - PDF 0.83mb Download
Version Description Date Type File Size
- Product Manual - PDF 35.57mb Download
- Product Manual - PDF 1.70mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 1.13mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
- Manual - Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download

Central WiFiManager

  • Slide 1

  • Slide 2

  • Slide 3

  • Slide 4

  • Slide 5

  • Slide 6

  • Slide 7

  • Slide 8

  • Slide 9

Central WiFiManager

CWM‑100

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

Central WiFiManager, kablosuz erişim noktası yönetimine dair iş akışını kolaylaştırmak için D-Link’in ağ yöneticilerine sunduğu en yeni araçtır. Central WiFiManager, daha geleneksel olan donanım tabanlı çoklu erişim noktası yönetim sistemine yenilikçi bir yaklaşımdır ve bir ağdaki kablosuz erişim noktalarını uzaktan yönetmek ve izlemek için merkezi bir sunucu kullanır.


Download the datasheet.

Specs

Download the datasheet.

Yönetim platformu

 Yazılım

Access point management - number supported per unit (default/upgradeable)

 Up to 1000 APs

Desteklenen erişim noktaları

 DAP-2310

DAP-2360

DAP-2610

DAP-2660

DAP-2680

DAP-2695

DAP-3662

Auto channel and power management

 +

Band steering

 +

Centralised AP firmware upgrade

 +

Rogue AP/Client detection and mitigation

 +

NAT pass-through

 +

Multi-tenancy

 +

Bandwidth control

 1 Mbps minimum granularity

Bandwidth optimisation

 +

External user databae - POP3 and LDAP

 +

Voucher-based authentication

 +

Captive portal
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.93mb Download
Version Description Date Type File Size
- Product Manual - PDF 4.07mb Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download

Wireless Kontrolör

  • Slide 1

  • Slide 2

  • Slide 3

Wireless Kontrolör

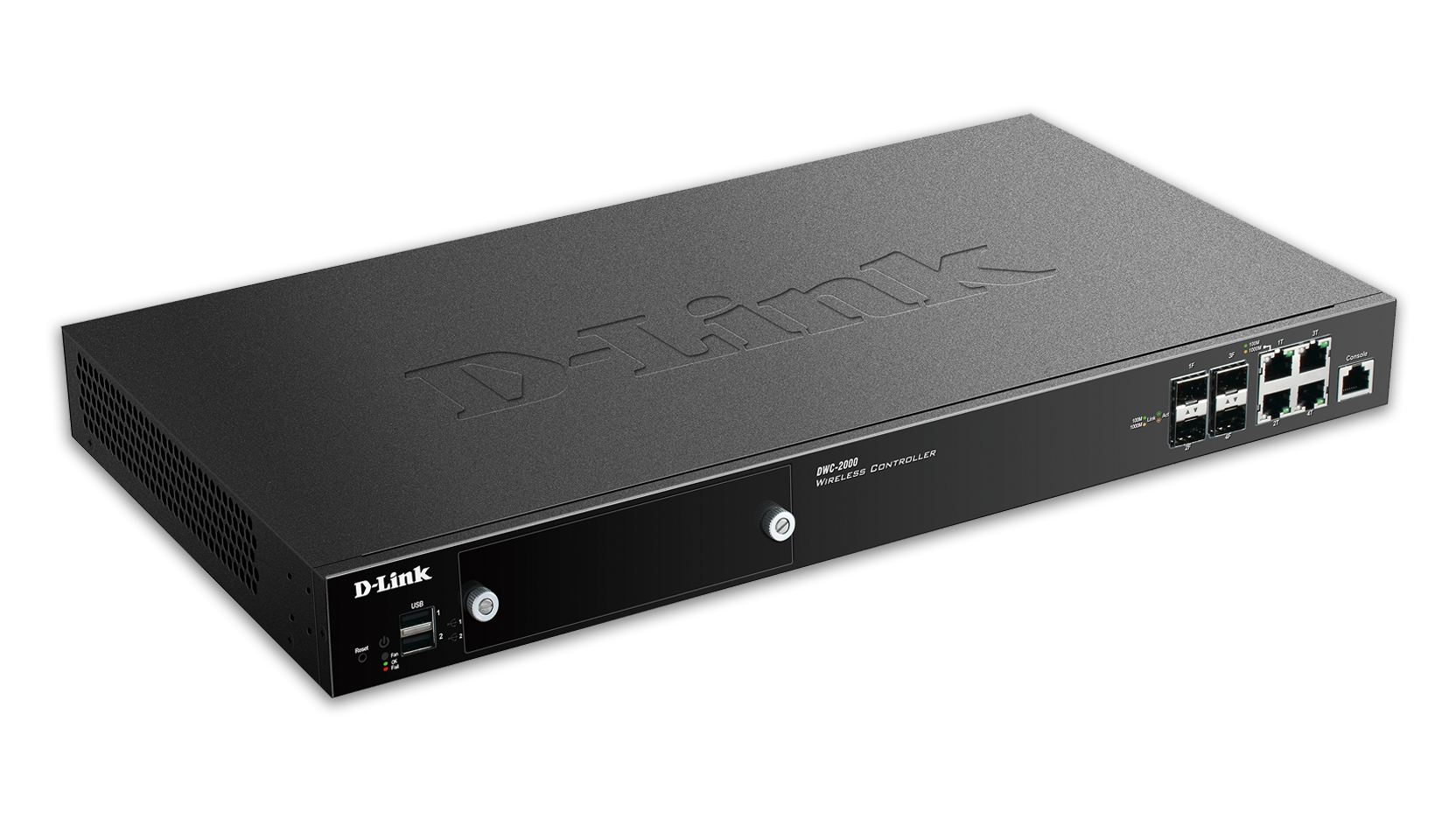

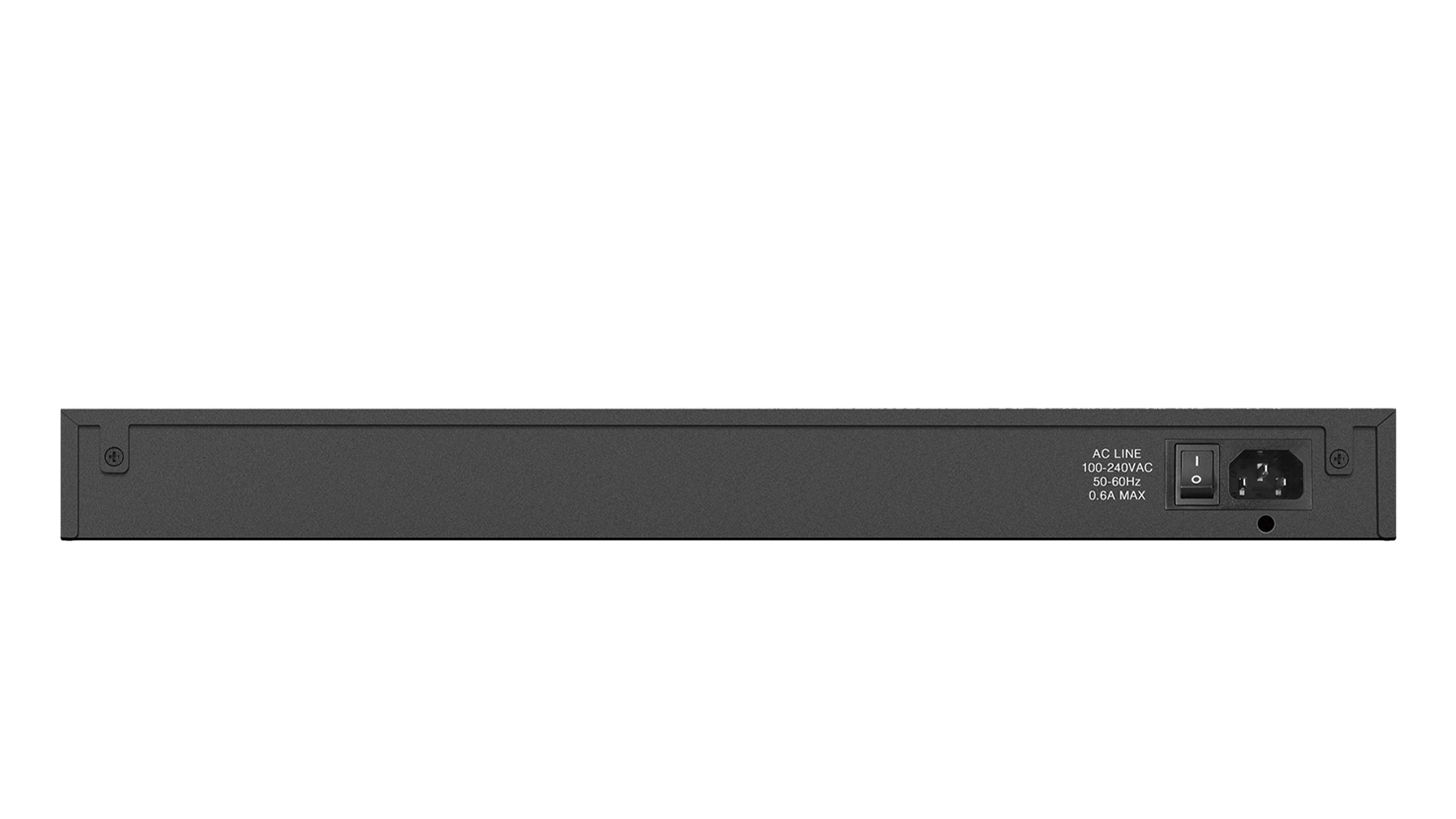

DWC‑2000

  • Product Status (Revision A): Live
    Live: The product is actively being manufactured and sold.

D-Link'in DWC-2000 Unified Wireless Kontrolörü, çok sayıda erişim noktasından oluşan kurulumlar için uygun maliyetli bir kablosuz yönetim çözümüdür. 64 adet Unified Wireless Erişim Noktasını yönetebilme özelliğiyle eğitim ve konaklama alanlarında faaliyet gösteren kurumlar başta olmak üzere her büyüklükteki işletmeye uygun güvenilir, güvenli, kendiliğinden iyileşen, ölçeklenebilir kablosuz ağ sunar.



Download the datasheet.

Specs

Download the datasheet.

Port sayısı

 5 - 14 ports

Layer

 Layer 3

Baskın port türü

 1000BASE-T Gigabit Ethernet

SFP

Uplink port tipi

 Combo 1000BASE-T/SFP

Yönetim platformu

 Hardware

Access point management - number supported per unit (default/upgradeable)

 64/256 APs

Desteklenen erişim noktaları

 DWL-2600AP

DWL-3610AP

DWL-6600AP

DWL-6610AP

DWL-6610APE

DWL-6620APS

DWL-6700AP

DWL-7620AP

DWL-8610AP

DWL-8710AP

Maximum number of device clustering per group

 4

Access point management - number supported per cluster (default/upgradeable)

 256/1024

AP auto discovery and monitoring

 +

AP authentication by local database and external RADIUS

 +

Auto channel and power management

 +

Centralised AP firmware upgrade

 +

Fast roaming

 L2

WPA/WPA2-personal/enterpise

 +

TKIP/AES şifreleme

 +

Rogue AP/Client detection and mitigation

 +

WIDS

 +

VLAN group (max static)

 255

VLAN type

 GVRP

MAC-based

Port-based

Protocol-based

Advanced VLAN

 Double VLAN (Q-in-Q)

Voice VLAN

Routing table size

 2048

Number of QoS queues per port

 4

CoS based on contents

 +

Bandwidth control

 64 Kbps minimum granularity

WMM

 +

ACL based on packet contents

 +

Time-based ACL

 +

Encryption protocol supported

 SSH

SSL (v1/v2/v3)

802.1X access control

 +

External user databae - POP3 and LDAP

 +

RADIUS/TACACS+ authentication

 +

Captive portal

 +

SNMP (v1/v2c/v3)
+

Support

Version Date Type File Size
Datasheet EN - PDF 0.33mb Download
Version Description Date Type File Size
- Product Manual - PDF 1.76mb Download
- Product Manual - PDF 8.74mb Download
Version Description Date Type File Size
- Quick installation guide - PDF 3.31mb Download
- Quick installation guide - PDF 3.15mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
- Manual - Download
- Manual - Download
Version Description Date
- Additional downloads - Download
- Additional downloads - Download
- Additional downloads - Download
